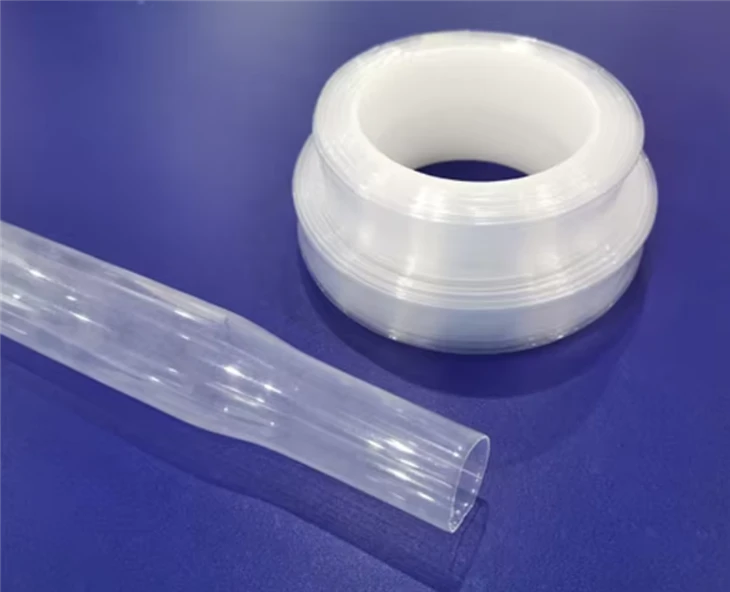

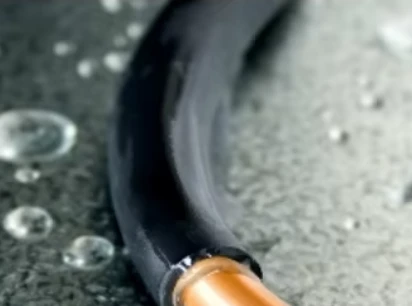

Heat Shrink Oil-resistant Tube
This heat shrink oil resistant tube is manufactured from cross-linked polyolefin and is designed for one job that ordinary heat shrink tubing cannot do: survive continuous contact with cable oil. It is mainly used in PILC cable terminations and joints - paper-insulated, lead-covered cables - where the impregnating oil would otherwise swell, soften or degrade a standard polyolefin sleeve. The tube provides oil resistance, insulation and sealing protection in the same part.
For anyone specifying a heat shrink tube for PILC cable terminations and joints, the difference is measurable: after 168 hours immersed in 80 °C cable oil, tensile strength and elongation at break vary by no more than ±20%. The same ±20% limit is held after 168 hours of heat ageing at 130 °C, so the tube keeps its mechanical integrity in both the oil and the heat a live PILC joint sees.
Electrically it is a genuine insulation sleeve, not just a barrier: volume resistivity ≥1×10¹⁴ Ω·cm, dielectric strength ≥20 kV/mm and a dielectric constant ≤4. It shrinks to a tight, sealed wall over the joint (Shore A hardness ≥80) and passes a 160 °C, 4-hour heat-shock test with no cracking.
Applications

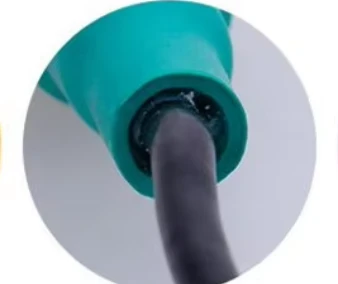

PILC cable terminations - oil barrier and insulation over the wiped/terminated end.
PILC cable joints - over the joint body where oil migrates along the cores.
Paper-insulated, lead-covered distribution cables at distribution voltages.
Oil-exposed cable ends in switchgear, transformers and joints where cable oil is present.
Any cable end where the environment brings cable oil or transformer oil into contact with the sleeve.
Why oil resistance matters: PILC cable insulation is oil-impregnated paper, and that oil will migrate into and through ordinary polyolefin heat shrink, causing swelling, loss of wall strength and eventual failure of the seal. An oil-resistant cross-linked polyolefin tube holds its dimensions and mechanical properties in oil, so the joint stays sealed and insulated for its service life.
A
Key points
Cross-linked polyolefin, purpose-built for oil contact - not a general-purpose tube.

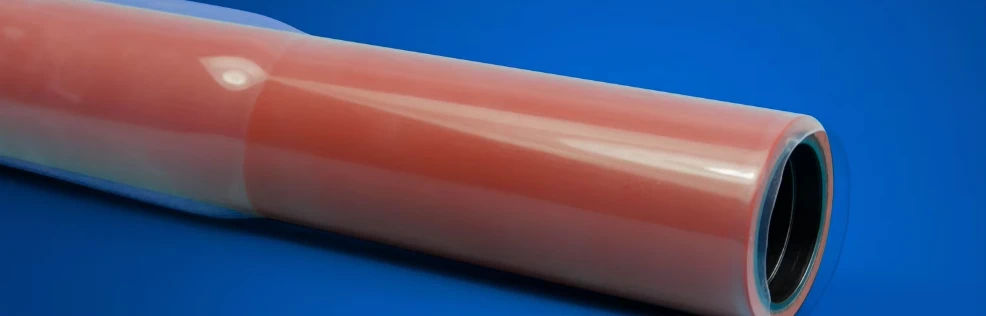

Made for PILC / paper-insulated cables - terminations and joints, the classic oil-exposure application.

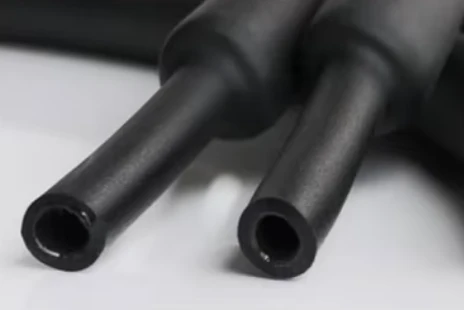

Oil resistance verified at 80 °C cable oil, 168 h - strength and elongation change ≤±20%.
Heat ageing 130 °C × 168 h - same ≤±20% limits, for hot joints.
Insulation + sealing in one - ≥20 kV/mm dielectric strength, ≥10¹⁴ Ω·cm volume resistivity, ≤4 dielectric constant.

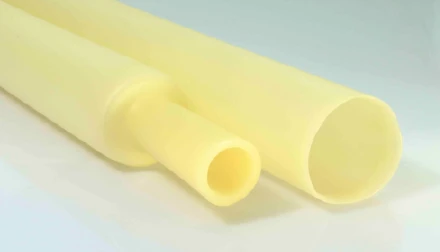

10 sizes, 20–120 mm supplied ID, recovering to 8–45 mm - covering a wide range of PILC joint diameters.
Standard length 300–1000 mm, cut to project length.
No cracking at 160 °C, 4 h heat shock; hardness ≥80 Shore A.
Technical data
| Spec. | As supplied - ID min (mm) | As supplied - wall (mm, ±0.3) | After recovered - ID max (mm) | After recovered - wall (mm, ±0.3) | Standard length (mm) |
|---|---|---|---|---|---|
| WRSGY-20/8 | 20 | 0.7 | 8 | 1.8 | 300–1000 |
| WRSGY-30/11 | 30 | 0.7 | 11 | 1.8 | 300–1000 |
| WRSGY-35/12 | 35 | 0.7 | 12 | 2.0 | 300–1000 |
| WRSGY-40/17 | 40 | 1.0 | 17 | 2.2 | 300–1000 |
| WRSGY-50/22 | 50 | 1.7 | 22 | 3.7 | 300–1000 |
| WRSGY-60/23 | 60 | 1.4 | 23 | 3.7 | 300–1000 |
| WRSGY-75/29 | 75 | 1.1 | 29 | 2.8 | 300–1000 |
| WRSGY-85/30 | 85 | 0.9 | 30 | 2.8 | 300–1000 |
| WRSGY-100/38 | 100 | 1.1 | 38 | 3.0 | 300–1000 |
| WRSGY-120/45 | 120 | 1.1 | 45 | 3.0 | 300–1000 |
| Property | Test method | Standard value |
|---|---|---|
| Tensile strength | ASTM D-638 | ≥10 MPa |
| Elongation at break | ASTM D-638 | ≥350% |
| Tensile strength variation after heat ageing (130 °C × 168 h) | ASTM D-5510 | ≤±20% |
| Elongation at break variation after heat ageing (130 °C × 168 h) | ASTM D-5510 | ≤±20% |
| Tensile strength variation after oil resistance (80 °C cable oil, 168 h) | ASTM D-538 | ≤±20% |
| Elongation at break variation after oil resistance (80 °C cable oil, 168 h) | ASTM D-538 | ≤±20% |
| Volume resistivity | IEC 60093 | ≥1×10¹⁴ Ω·cm |
| Dielectric strength | IEC 60243 | ≥20 kV/mm |
| Dielectric constant | IEC 60250 | ≤4 |
| Hardness | ISO 868 | ≥80 Shore A |
| Heat shock | - | 160 °C, 4 h, no crack |
Internal linking
| Anchor text here | Target page |
|---|---|
| complete heat shrink cable termination kit | Heat Shrink Termination for Cables (RST / MV 42 kV) |
| general-purpose protective / sealing tube | Heat Shrink Protective Tube (WRSHG) |
| stress control tube | Heat Shrink Stress Control Tube (WRSYL) |
| anti-tracking insulation tube | Heat Shrink Anti-tracking Insulation Tube (WRSJG) |
| adhesive-coated breakout for the crutch | Heat Shrink Breakout (WRSZT) |
| rain sheds for creepage | Heat Shrink Anti-tracking Rain Shed (WRSSQ) |

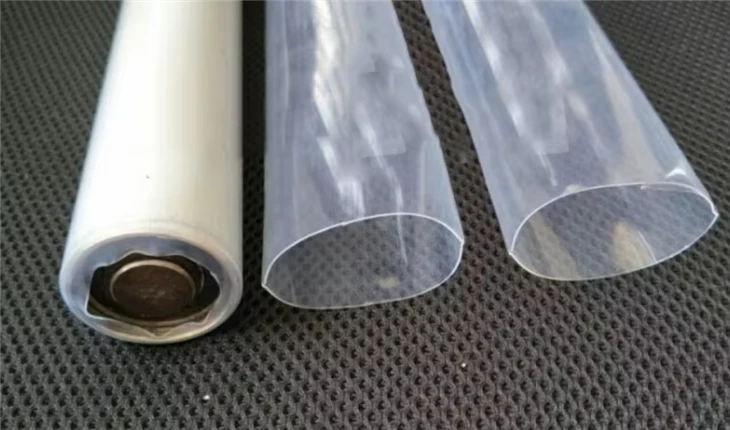

Product display
Certificate
FAQ
1. What makes this tube "oil resistant"?
It is made from a cross-linked polyolefin compound rated for cable oil contact: after 168 h at 80 °C in cable oil, tensile strength and elongation change by ≤±20%.
2. What is it used for?
Mainly PILC (paper-insulated lead-covered) cable terminations and joints, providing oil resistance, insulation and sealing protection.
3. Can it be used on oil-filled cable joints?
It is intended for oil-exposed cable ends such as PILC terminations and joints; confirm the specific joint type and oil with the factory before ordering.
4. What sizes are available?
Ten sizes from 20 mm to 120 mm supplied inner diameter, recovering to 8–45 mm, in standard lengths of 300–1000 mm.
5. What are the electrical ratings?
Dielectric strength ≥20 kV/mm, volume resistivity ≥1×10¹⁴ Ω·cm, dielectric constant ≤4.
