Products Description

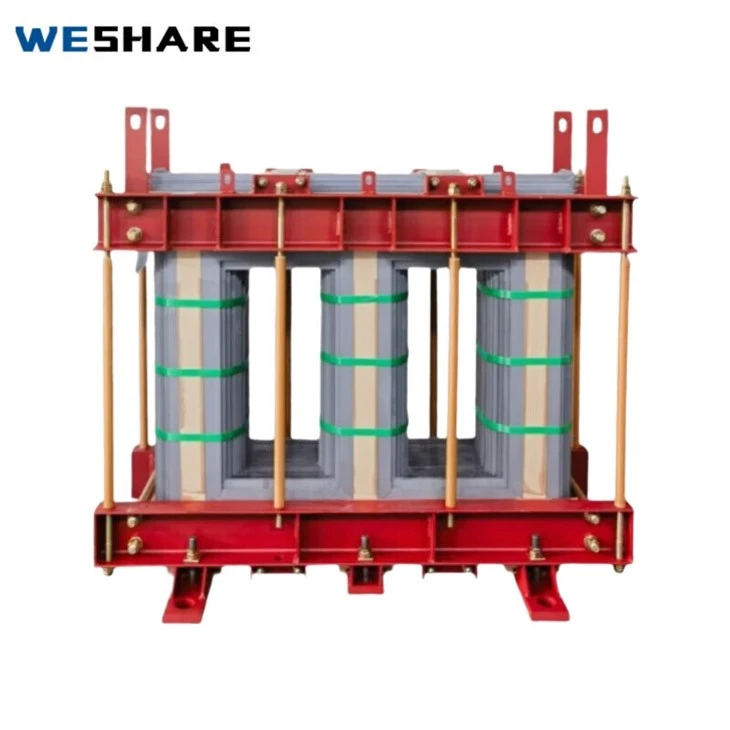

The oil-immersed transformer core is an important part of the transformer and is mainly used to support the windings and form a magnetic flux path. The iron core is made of high-quality cold-rolled silicon steel sheets or amorphous alloy materials, and is precision cut, stacked and insulated to reduce losses and improve efficiency.

Its design is optimized for use in various types of oil-immersed power transformers, distribution transformers and special transformers, and is widely used in power, industry and renewable energy fields.

The main functions of silicon steel sheets are:

Magnetic conductivity (easily magnetized in an electromagnetic field)

Reducing energy consumption (reducing iron loss and eddy current loss)

Improving the efficiency of motors and transformers

We provide various types of silicon steel sheets:
1. We can provide raw material silicon steel coils
2. We can provide silicon steel sheets for small motors, such as EI cores, C-type cores, etc.
3. We can provide transformer cores (we can provide assembled laminations or finished cores)

Classification	Description
Cold - rolled Grain Oriented Electrical Steel (GO)	Used for transformer cores. The magnetic properties are optimized in the rolling direction, with low iron loss and high magnetic permeability.
Cold - rolled Non - Oriented Electrical Steel (NGO)	Used for rotating machinery such as motors and generators. The magnetic properties are basically the same in all directions.
