Electrical insulation paper
Your Professional Electrical Insulation Paper Supplier
Hangzhou Weshare Import & Export Co.,Ltd. is a leading Chinese manufacturer and exporter of transformer components, electrical insulation materials and consulting company. Weshare founded in 2005 by one specialized sales in transformer accessories. Most of our products are used in oil and dry transformers, electrical motors, generators and electronic products.Our mission is to ensure appropriate product quality while satisfying the needs of our customers is our prime objective and represents the core principle of our business activities.
-
![Insulating Paper for motor]()
Insulating Paper for motorWe are a professional manufacturer of insulation materials, support ODM/OEM, please contact us to get free samples！read more -

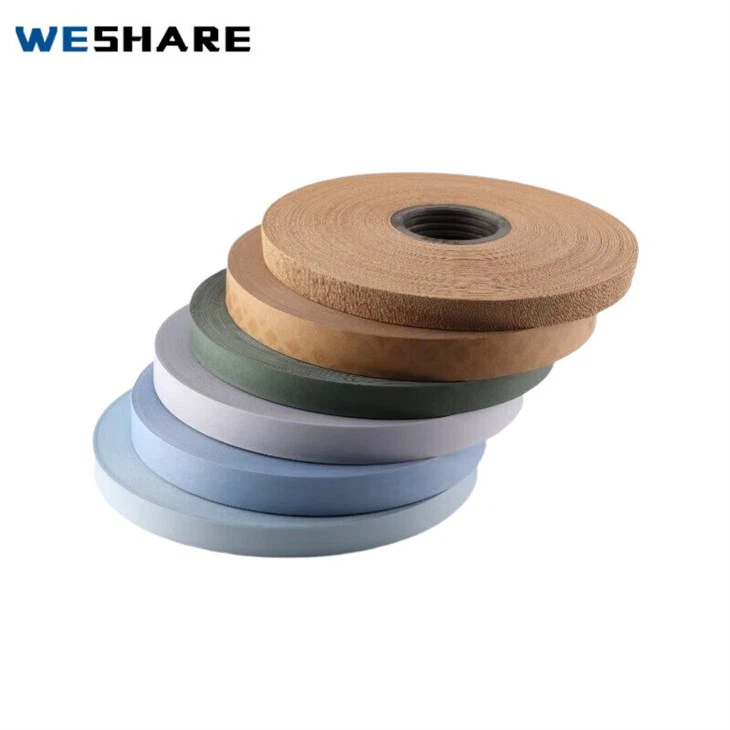

![Insulating Paper For Transformers]()
-
![Transformer Electrical Insulation Paper]()
-
![Insulation Paper for DDP]()
-
![Electrical Insulating Paper for Transformer]()
-
![Electrical Insulating Paper]()
-
![Electric insulating Paper]()
-
![Electrical Insulating Paper For Transformers]()
Electrical Insulating Paper For TransformersElectrical Insulating Paper For Transformers made from plant fibers has been widely used. Electrical Insulating Paper advantages are summarized as follows: low cost; high mechanical strength and...read more -
![Cable Insulation Paper]()
-
![Electrical Insulated Paper for Motors]()
-
![Insulated Paper for motors]()
-
![Electric Motor Insulation Paper]()
Electric Motor Insulation PaperElectric motor insulation paper is flexible and easy to process. It can be cut into various specifications and shapes and is suitable for various electrical equipment.read more
Why Choose Us
Quality Assurance
Certified by UL, SGS, and ISO9001, Weshare upholds stringent quality standards.
Extensive Experience
Weshare, since 2005, excels in transformer accessories and electrical engineering.
Export markets
With a strong focus on export markets, we have successfully captured significant market share in East Asia, North Europe, the Middle East, South America, Egypt, and East Africa. Our dedication to ensuring appropriate product quality while meeting customer needs is the cornerstone of our business philosophy.
Product Application
Our company boasts a wide array of products used in oil and dry transformers, electrical motors, generators, and electronic devices.
Advantages of Electrical Insulation Paper
Heat insulation
The main purpose of thermal paper insulation is to prevent heat transfer between spaces. When paper is shredded or crumpled, it traps air bubbles in its fibers, creating an invisible escape barrier. Since air is a poor conductor of heat, this barrier manages to prevent heat from moving between its spaces. This helps conserve heat to maintain the temperature in your home, especially during the winter months.
Electrical insulation
Many people die every year due to high-voltage electrical injuries. That's why it's important to properly insulate all appliances. Using paper for electrical insulation not only protects you from electric shock, it also reduces the risk of short circuits and irreversible damage to equipment. For heavier machines like transformers, engineers use winding insulating papers such as kraft paper, Nomex paper, etc.
Sound absorbing
Paper's fibrous structure also helps reduce unnecessary noise in your home and from machines. When noise passes through insulating paper, its fibers disrupt the sound waves and weaken them. Not only does a quieter environment make your home more comfortable, it can also help you better focus on your work at the office.
Types of Electrical Insulation Paper
Kraft Insulation Paper
Kraft insulation paper is known for its durability and mechanical strength. It is manufactured by impregnating wood pulp with a synthetic resin, enhancing its resistance to moisture and other environmental factors. Kraft paper is commonly used in transformer and motor insulation systems, providing effective dielectric properties and reliable performance. Its cost-effectiveness and adaptability to various electrical applications contribute to its widespread use.
Fish Paper (Vulcanized Fiber)
Fish paper, also known as vulcanized fiber, is a unique type of electrical insulation material that finds its applications in low-voltage and high-voltage systems. It is manufactured by chemically treating paper with zinc chloride, resulting in a material with excellent dielectric properties and mechanical strength. Fish paper is often used for slot liners, coil separators, and gasket materials in electrical devices. Its ability to be easily punched, cut, and shaped makes it suitable for intricate designs.
Crepe Paper
Crepe paper is a flexible and highly conformable electrical insulation material. It is manufactured by crinkling kraft paper, giving it a unique texture and stretchability. Crepe paper is frequently used in applications where conformability to irregular shapes is essential, such as in transformer winding and coil insulation. Its elasticity and insulating properties make it a reliable choice for achieving insulation in intricate spaces.
Mica Insulation Paper
Mica insulation paper combines the properties of natural mica mineral with a suitable binder. Mica paper offers exceptional electrical insulation and thermal resistance. It is used in applications that demand high temperature resistance, such as in induction motors, high-voltage cables, and power generators. Mica paper's ability to withstand extreme temperatures and provide reliable electrical insulation makes it crucial for maintaining the integrity of electrical systems.
How to Store Electrical Insulation Paper
Store in a dry environment
Moisture can degrade the insulation properties of crepe paper. Therefore, it should be stored in a dry environment, away from direct sunlight and excessive humidity.
Avoid extreme temperatures
Extreme temperatures can impact the integrity of the paper. Store it in a temperature-controlled area, avoiding exposure to extreme heat or cold.
Protect from physical damage
Ensure that the crepe paper is not subjected to any physical damage during storage. Avoid placing heavy objects on top of the rolls and protect them from sharp edges or rough surfaces.
Use appropriate packaging
Store the crepe paper in its original packaging or wrap it in polyethylene sheets to prevent dust accumulation and potential damage.
How Electrical Insulation Paper Improves Performance
Enhanced Electrical Insulation
The primary function of insulation paper is to provide electrical insulation. By forming a barrier between conductive components, insulation paper prevents electrical currents from flowing where they shouldnt.
Thermal Management
Electrical insulation paper also plays a significant role in thermal management. Electrical devices generate heat during operation, which can degrade the performance of the system if not properly managed.
Moisture Resistance
One of the key benefits of modern electrical insulation paper is its resistance to moisture. Moisture can be a significant threat to electrical systems, leading to corrosion, loss of insulation strength, and eventual breakdown.
Mechanical Durability
Electrical insulation paper is also valued for its mechanical strength. It must be durable enough to withstand the physical stresses involved in the winding, forming, and pressing processes during equipment assembly.
Environmentally Friendly and Sustainable
Many manufacturers are now producing environmentally friendly insulation papers. These papers are made from cellulose fibers or other recyclable materials, providing a sustainable option for companies focused on reducing their carbon footprint.
Improving Overall Equipment Performance
By providing robust electrical insulation, thermal stability, moisture resistance, and mechanical strength, insulation paper improves the overall performance of electrical equipment. It ensures that systems can operate safely, efficiently, and reliably over extended periods.
Application of Electrical Insulation Paper
Power Transformer: In power transformer, insulation paper plays a key role in preventing short circuit as the insulating layer between windings. It can not only withstand high voltage and temperature, but also maintain stable insulation performance for a long time. In addition, insulation paper is also used for transformer wire winding, layer insulation, segment and box insulation, etc.
Motors and generators: In motors and generators, insulation paper is used for slot wedge insulation, phase insulation, and the fixing and protection of winding ends. These applications rely on the excellent electrical properties and mechanical strength of insulation paper to ensure the normal operation and long-term stability of motors and generators.
Capacitors: As a dielectric material, the insulation paper in the capacitor can improve the energy storage capacity and stability of the capacitor. At the same time, it can withstand various stresses and temperature changes generated by the capacitor during operation.
Cables: In cable manufacturing, insulation paper is used as an inner and outer insulating layer to protect the conductor from the external environment while ensuring the safety of current transmission. This application places high demands on the electrical properties and heat resistance of insulating paper.
Electronic components: In the manufacture of electronic components, insulation paper is often used as an insulating layer on printed circuit boards to prevent interference between circuits. This application requires insulation paper to have excellent dielectric properties and chemical stability.
FAQ
As one of the leading electrotechnical insulation paper suppliers in China, we warmly welcome you to wholesale high-grade electrotechnical insulation paper made in China here from our factory. All our products are with high quality and competitive price.
