The enclosure is the substation
A box substation is only as good as the shell around it. The prefabricated substation enclosure houses the transformer and switchgear, seals them from weather and intrusion, controls noise and radiation, and defines how safely and quickly the unit can be installed. We fabricate both mainstream systems - the American (pad-mounted) shell and the European walk-in box - as a metal-enclosed switchgear housing built to the finish and configuration each project needs.
Two systems, one factory
| American (pad-mounted) | European walk-in box | |
|---|---|---|
| Configuration | Compact front cabin integrated with the transformer | Transformer inside an overall enclosed box shell |
| Size & installation | Small, compact; convenient, flexible pad-mounted installation | Larger walk-in enclosure; unit-by-unit assembly |
| Safety | Fully insulated, fully sealed; safe, reliable, maintenance-free | Overall enclosure with acoustic and shielding treatment |
| HV connection | Elbow-type plug connectors; live plugging possible in emergencies | Compressed-air, vacuum or SF6 load switch + fuse, chosen to switching frequency |
| Customisation | Standard compact format | Each functional unit independent - customised per requirement |
| Typical use | Distribution networks, tight urban sites | Larger capacity, noise-sensitive or walk-in sites |
American (pad-mounted) box shell
Widely used in residential communities, high-tech centres, factories, mining enterprises, airports, stations and schools. The compact structure and small footprint make siting easy, while the fully insulated, fully sealed construction is safe, reliable and maintenance-free.
The practical advantage is the elbow-type plug connector: it makes connecting high-voltage incoming cables quick and clean, and lets the unit act as a load switch in an emergency, with live plugging - a real benefit for fast restoration on distribution networks.

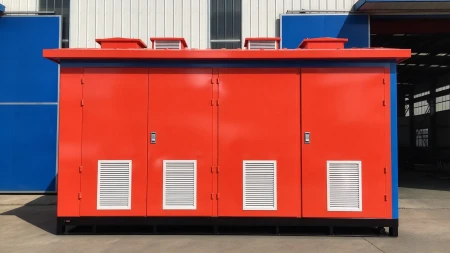

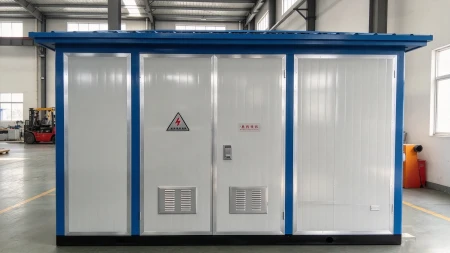

European walk-in box substation
The transformer sits inside an overall enclosed box shell. Acoustic insulation and an internal shielding layout mitigate transformer hum and limit electromagnetic radiation, helping the installation meet strict urban environmental and EMC expectations - important where the unit sits near housing or public space.
High-voltage protection is selected to the load-switching frequency: a compressed-air, vacuum or SF6 load switch with fuse, giving flexible capacity for the duty. Because each functional unit is independent, the box can be customised compartment by compartment - a different HV scheme, metering arrangement or cable entry can be built without redesigning the whole enclosure.

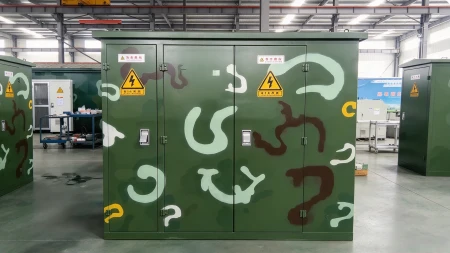

Camouflage painted substation cabinet
Custom camouflage-finish box-type substation with high-voltage warning labels and metal enclosure.

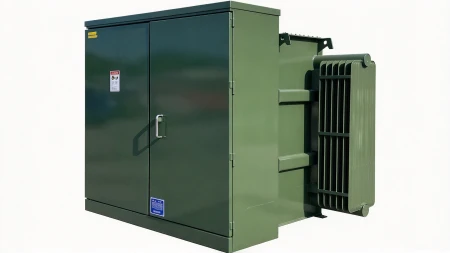

Green pad-mounted transformer cabinet
Compact transformer kiosk with integrated radiator, used for secondary power distribution in industrial projects.

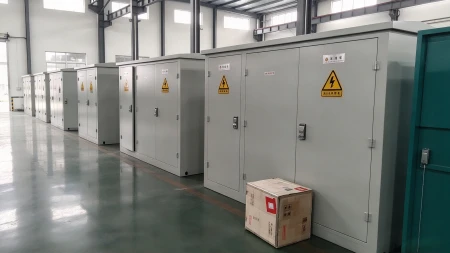

Row of gray distribution cabinets in workshop
Factory-assembled low-voltage and high-voltage switchgear cabinets ready for delivery.
Robust manufacturing & protection standards
Enclosure protection
| IP rating | Protection | Typical use |
|---|---|---|
| IP33 | Solid objects > 2.5 mm; spraying water | Ventilated outdoor designs |
| IP54 | Dust-protected; splash-proof | Sealed outdoor designs |
Material & anti-corrosion
| Item | Specification |
|---|---|
| Body material | High-quality cold-rolled steel, hot-dip galvanised steel or aluminium sheet (to specification) |
| Pre-treatment | Shot blasting / phosphating for coating adhesion and corrosion resistance |
| Finish | UV-resistant outdoor powder coating or multi-layer anti-corrosion baked paint |
| Colour | To specification (RAL or project colour) |
This finish system is built for permanent outdoor service - sun, rain, salt spray and industrial atmosphere.
Mechanical strength
The structure is designed to the project's wind-load, snow-load and seismic requirements, so the enclosure holds its shape and door alignment through service loads and weather.
Fabrication capability
Equipped with CNC laser cutting, CNC bending and automatic welding lines, we hold high precision across every enclosure component - panels, frames and doors integrate cleanly and seal as designed.
Built to your drawings
We work directly from your engineering drawings - AutoCAD (DWG/DXF), SolidWorks or PDF - or collaborate on a custom design to match your specific switchgear and transformer dimensions.
Applications
Residential communities · commercial and high-tech centres · factories and industrial parks · mining enterprises · airports and stations · schools and public facilities.
What we need to quote your project
System type - American (pad-mounted) or European walk-in
Transformer rating and dimensions, plus enclosure outline
HV connection scheme - elbow connectors, or load switch + fuse type
Enclosure size, compartment layout and cable-entry arrangement
IP rating, material and surface finish
Destination environment - wind/snow/seismic, coastal, and any sound/radiation limit
Not sure about the exact dimensions? Send us your single-line diagram (SLD) or transformer specifications, and our engineering team will propose an optimal enclosure layout.
Standards
Fabricated in strict accordance with IEC 62271-200 (AC metal-enclosed switchgear and controlgear) and IEEE C57.12.28 (pad-mounted equipment - enclosure integrity), plus customized project specifications.
