Product Description

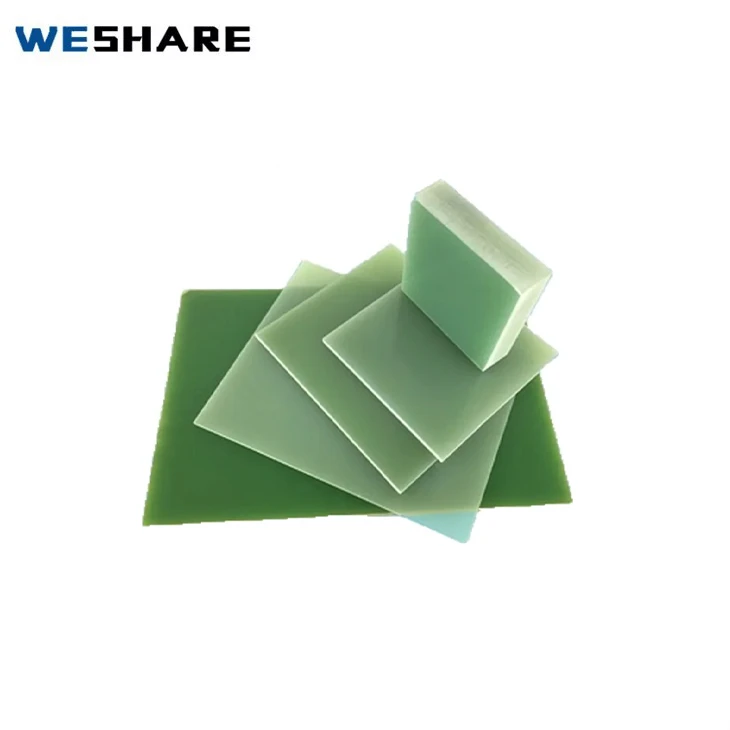

Fr4 Laminated Fiberglass Sheets is a rigid insulating material made of electronic grade alkali-free glass fiber cloth impregnated with epoxy resin and cured by high temperature and high pressure lamination, which meets the NEMA LI 1-1991 standard.
Fr4 Laminated Fiberglass Sheets certification standards:
- UL 94 V-0 flame retardant certification
- RoHS 2.0 environmental certification (lead and cadmium content <0.01%)
- IPC-4101 electronic substrate standard
| NO. | PROPERTIES | UNIT | TESTING METHOD | STANDARD VALUE | TESTING RESULT |
|---|---|---|---|---|---|
| 1 | Flexural strength perpendicular to laminations - under normal room temperature | MPa | ISO 178 | ≥ 350 | 496 |
| 2 | Notch Impact strength parallel to lamination (Notched charpy) | kJ/m² | ISO 179 | ≥ 37 | 67 |
| 3 | Dielectric strength perpendicular to laminations (in oil 90±2°C), 1.0mm in thickness | kV/mm | IEC 60243 | ≥ 14.2 | 21 |
| 4 | Breakdown voltage parallel to laminations (in oil 90±2°C) | kV | IEC 60243 | ≥ 45 | 75 |
| 5 | 1MHz dielectric coefficient | - | IEC 60250 | ≤ 5.5 | 4.53 |
| 6 | 1MHz loss factor | - | IEC 60250 | ≤ 0.04 | 0.021 |
| 7 | Water absorption rate, 1.6mm in thickness | % | ISO 62 | ≤ 0.25 | 0.07 |
| 8 | Insulation resistance Impregnated in water, D24/23 | Ω | IEC 60093 | ≥ 5.0×10¹⁰ | 8.2×10¹⁰ |
| 9 | Bonding strength | N | - | ≥ 6500 | 8012 |
| 10 | Density | g/cm³ | ISO 1183 | 1.70 - 1.90 | 1.90 |
we provide Product types and specifications
1/Type classification
Thickness: 0.5mm~50mm (support non-standard customization, tolerance ±0.05mm)
Color: natural color (amber), black (adding carbon black), customized color (such as green, blue)
Surface treatment: glossy (Ra≤0.8μm), matte (Ra≥1.6μm), sandblasting (increase adhesion)
2/Recommended related products
G11 epoxy board: higher temperature resistance (continuous 150℃), but the cost increases by 20%
Composite insulation board: G10+copper foil (for grounding shielding)
Prepreg: used for multi-layer insulation structure molding
why choose us?
We are a professional manufacturer for B2B, please contact us to get free samples !
Our risk reduction commitment
- Free samples: limited to 1-2 standard specifications (regular specifications 1220*2470mm, 1020*1220mm, 1220*1850mm are in stock, other specifications are customized)
- Warranty terms: free replacement due to material defects within 24 months
- Factory inspection support: remote video factory inspection service is provided.
Note：
Minimum order quantity: 100KG
Product specifications: Regular 1220*2470mm, 1020*1220mm, 1220*1850mm, thickness, width and length can be customized
Product packaging: Regularly we use pallet packaging, but we can customize the packaging according to customer needs
Logo customization: Made according to customer needs
Logistics: Sea/Air
