Description

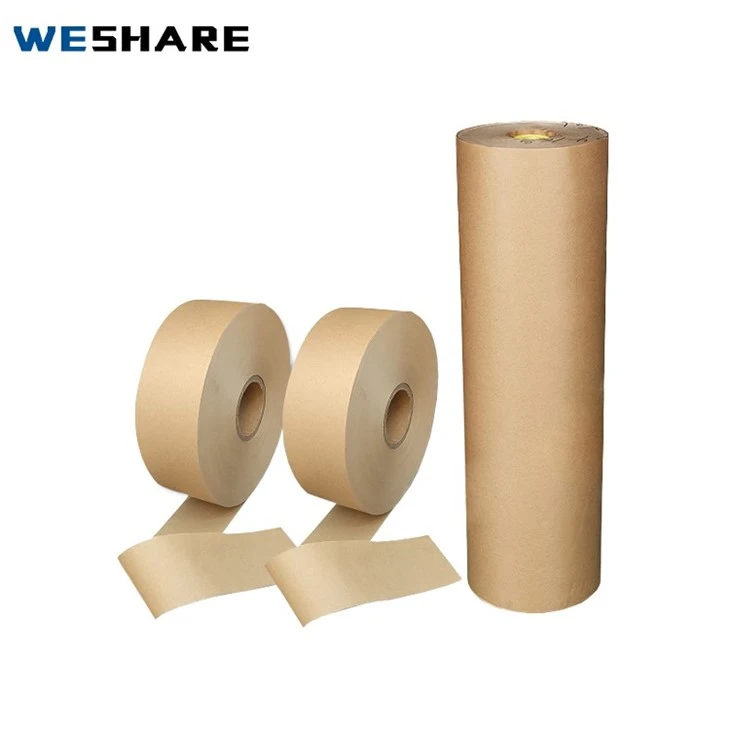

Insulating Paper for motor is a thin layer of insulating material made of natural cellulose (wood pulp) or synthetic fiber through a special process. It is used for insulation protection of power cables, transformers, motors and other equipment.

Core function: Isolate conductive parts to prevent current leakage or short circuit, and be resistant to high temperature and aging.

Trusted support: Adopt international standards (IEC 60554, ASTM D202)

Product advantages

1/High insulation performance
Typical data: Breakdown voltage strength ≥30 kV/mm
Test basis: Provide a screenshot or number of the test results of a third-party test report (such as SGS, TÜV).
2/High temperature resistance
Data support: Long-term temperature resistance level is 105°C (ordinary type), 130°C (high temperature type)

Thickness：80μm

No	Item		unit	Q/JLLS 20471-2023 Requirement	Result
1	Thickness		μm	80±5%	81.3
2	Density ≥		g/cm³	0.90	0.95
3	Tensile strength ≥	MD	kN/m	6.2	8.3
3	Tensile strength ≥	CD	kN/m	3.1	4.2
4	Elongation ≥	MD	%	2.0	2.7
4	Elongation ≥	CD	%	4.0	8.5
5	Tearing resistance ≥	CD	mN	500	902
6	Electrical strength(AC) ≥		kV/mm	8.0	10.5
7	pH of water extract			6.5-8.5	7.0
8	Conductivity of water extract ≤		mS/m	10.0	3.0
9	Air permeability ≤		ml/min	35	12
10	Ash content ≤		%	0.7	0.3
11	Moisture content		%	6.0-9.0	7.5
12	Smoothness平 ≥		S	30	42
