Description

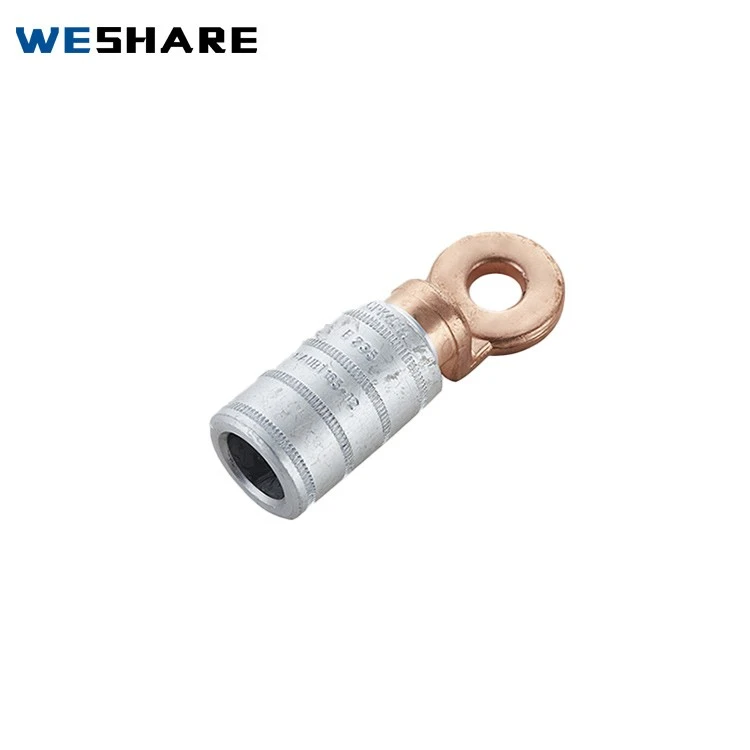

Bimetal Terminal Lug is a bimetallic terminal block, usually used to connect conductors of different materials, such as copper and aluminum
Bimetal terminal lugs are mostly useful where an aluminum cable has to be terminated by a copper bus bar or copper contact.
If Bimetal Terminal Lug of only copper or aluminum are used , a galvanic action occurs due to dissimilar contact. The use of bimetallic lugs thus ensures a technically sound and durable joint. The Aluminum barrel is friction welded to the copper palm thereby achieving the best possible transition between barrel & palm.
Material:Al≥99.5%,Cu≥99.9% Feature:
● Oil blocking structure ·Friction welded
● Clear markings on barrel to indicate correct crimping location.
● Preflled with jointing compound.
● Standard:NF C63-061
Product advantages
1. It has good electrical performance. When the copper and aluminum ends of the bimetallic terminal are connected to the wires of the corresponding materials, the contact resistance is small, and the tightness of the connection is ensured through special processes, reducing the contact resistance.
2. It has good conductivity. Copper and aluminum are both conductive materials. The bimetallic terminal combines the advantages of both, can conduct electricity efficiently, and ensure the normal operation of electrical equipment.
Product parameters
|
Type |
Conductor Size (mm2) |
Dimensions |
Stud size |
Pack(pcs) |
Crimping Die |
|||
|
L(mm) |
d(mm) |
D(mm) |
B(mm) |
Hex |
||||
|
CAUBT35-10 |
35 |
58.5 |
8 |
16 |
20 |
M10 |
300 |
|
|
CAUBT50-10 |
50 |
58.5 |
9 |
16 |
20 |
M10 |
300 |
|
|
CAUBT70-10 |
70 |
58.5 |
11 |
20 |
20 |
M10 |
240 |
E173 |
|
CAUBT70-12 |
58.5 |
11 |
20 |
20 |
M12 |
240 |
E173 |
|
|
CAUBT95-10 |
95 |
58.5 |
12.5 |
20 |
20 |
M10 |
240 |
E173 |
|
CAUBT120-10 |
120 |
58.5 |
13.7 |
20 |
20 |
M10 |
240 |
E173 |
|
CAUBT120-12 |
62 |
13.7 |
20 |
24 |
M12 |
240 |
E173 |
|
|
CAUBT150-10 CAUBT150-12 |
150 |
68 |
15.5 |
27 |
24 |
M10 |
150 |
|
|
68 |
15.5 |
27 |
24 |
M12 |
150 |
|||
|
CAUBT185-10 |
185 |
68 |
17 |
27 |
24 |
M10 |
120 |
|
|
CAUBT185-12 |
74 |
17 |
27 |
30 |
M12 |
120 |
||
|
CAUBT240-10 |
240 |
74 |
19.5 |
27 |
30 |
M10 |
120 |
|
|
CAUBT240-12 |
74 |
19.5 |
27 |
30 |
M12 |
120 |
||
|
CAUBT300-10 |
300 |
75 |
22 |
30 |
30 |
M10 |
90 |
|
|
CAUBT300-14 |
76.5 |
22 |
30 |
35 |
M14 |
90 |
||
