Products Description

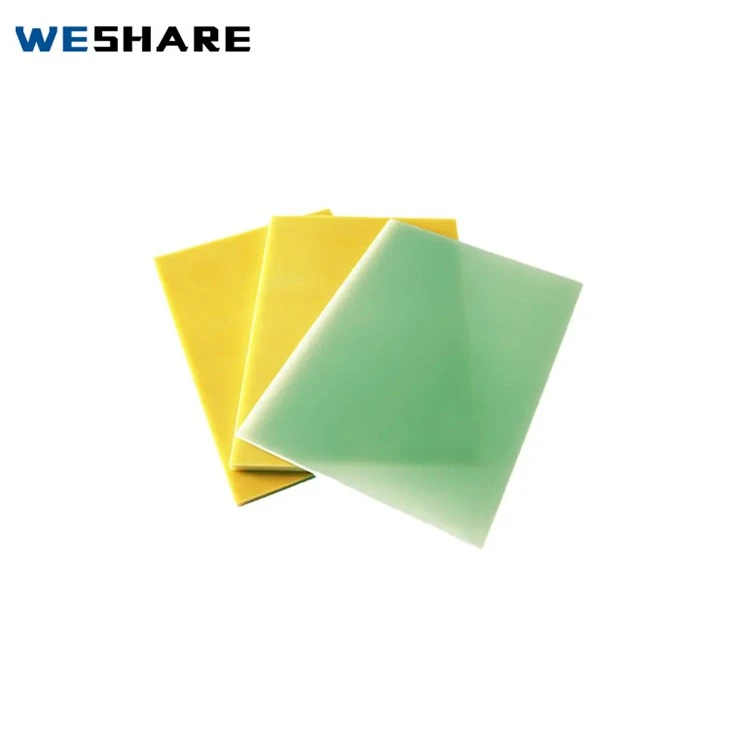

•Type :G11, Epoxy glass cloth laminates
•Specifiation:With high mechanical strength at temperature 150℃, good electrical properties under dry and humidity conditions, used for making insulating parts in electrical, electronical and other industries.
•Temperature grade: F glass (155℃)
•Color: nature, green
•Thickness: 0.5-80mm
•Size: 1020x1220mm 1020x2040mm 1220x2470mm
| Properties | UNITS | STANDARD VALUE |
|---|---|---|
| Flexural Strength Perpendicular to Laminations ≥ | Mpa | 340 |
| Insulation resistance after immersion in water (D - 24/23) ≥ | Ω | 5.0X10⁸ |
| Dielectric strength perpendicular laminations (in 90±2℃ transformer oil, 1 mm in thickness) ≥ | MV/m | 11.8 |
| Breakdown voltage parallel laminations (in 90±2℃ transformer oil) ≥ | kV | 40 |
| Permittivity(48 - 62Hz) ≤ | --- | 5.5 |
| Permittivity(1MHz) ≤ | --- | 5.5 |
| Dissipation factor(48 - 62Hz) ≤ | --- | 0.04 |
| Dissipation factor(1MHz) ≤ | --- | 0.04 |
| Density | g/cm³ | (1.70 - 1.90) |
| Water absorption(D - 24/23, 1.6mm in thickness) ≤ | mg | 20 |
Display
FAQ
1.Can you provide sample?
Yes, sample is free but the buyer needs to pay courier cost, if we can start business, we shall return the freight.
2.Can I visit your factory?
Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow your case.
3.How can I LOCK PRICE?
Our perfessional operation team will offer you a proposal based on your requirments, for more details, please contact our online service.
