Description

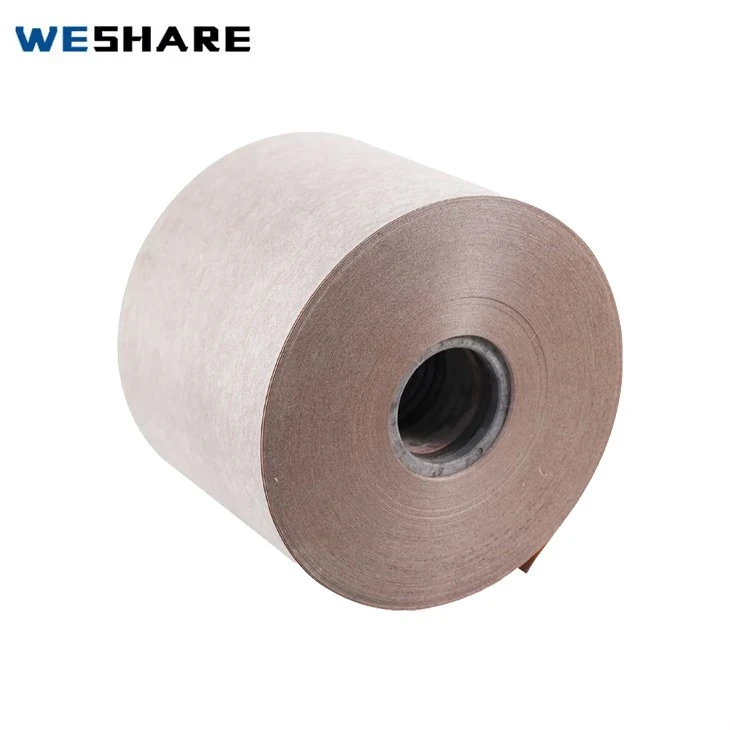

Name:insulation Paper AHA For Transformers
Thickness: 0.15-0.25mm
Width: 1000mm/others can be customized
Insulation class: H/Class (155/188 °C)
Composition:
insulation Paper AHA For Transformers is a high-performance flexible insulation material composed of three layers of aramid paper + polyimide film + aramid paper. It is commonly used in motor and transformer insulation systems under high temperature and high voltage environments.
|
(No.) |
(Property) |
(Unit) |
(Index value) |
|||
|
1 |
(Nominal thickness) |
mm |
0.15 |
0.2 |
0.25 |
|
|
2 |
(Tensile strength) |
(Before bending MD) |
N/10mm |
≥120 |
≥160 |
≥200 |
|
(Before bending CD) |
≥80 |
≥100 |
≥120 |
|||
|
3 |
(Elongation) |
(MD) |
% |
≥10 |
||
|
(CD) |
≥8 |
|||||
|
4 |
(Breakdom voltarel |
(Before bending) (After bending) |
KV |
≥8 |
≥9 |
≥9 |
|
≥7 |
≥8 |
≥8 |
||||
|
5 |
Temperature |
℃ |
≥180 |
|||
Customization Options
1.Thickness selection
2.Roll width or length
3.Sheet cutting or slitting
4.OEM labeling and packaging
5.Application-based insulation solutions
Application
Typical applications of AHA insulation paper:
Inter-turn, inter-slot, and inter-layer insulation of high-temperature and high-speed motors
Interphase insulation, gaskets, and end insulation of dry-type transformer windings
Coil wrapping and structural insulation of high-frequency and high-voltage power supply equipment
Occasions requiring high insulation levels such as electric vehicle motors and high-end servo motors
