Products Description
Flexible Composite Insulation Paper NHN is a three-layer flexible composite insulation material made of two layers of Nomex paper and one layer of polyimide film. It has excellent high temperature resistance (H grade, 180°C), electrical insulation performance and mechanical strength. It is particularly suitable for electrical equipment that requires high temperature stability and reliability, such as H-class motors, dry-type transformers, high-frequency power supplies, etc.
Flexible Composite Insulation Paper Structure: Nomex paper + polyimide film + Nomex paper
Note：We also offer AHA, which is composed of domestically produced aramid paper and polyimide film.
Insulation grade: H grade
Heat resistance: ≥180 degrees Celsius
Thickness: 0.15mm-0.25mm
Width: 1200mm
| NO. | Item | Unit | Index | ||||
| 1 | Nominal thickness | mm | 0.15 | 0.20 | 0.25 | ||
| 2 | Tensile strength | Longitudinal | Non-bending | N/10mm | ≥120 | ≥160 | ≥200 |
| After bending | ≥70 | ≥90 | ≥150 | ||||
| Horizontal | Non-bending | ≥80 | ≥100 | ≥120 | |||
| After bending | ≥50 | ≥80 | ≥100 | ||||
| 3 | Elongation | Longitudinal | Non-bending | % | ≥10 | ||
| Horizontal | Non-bending | ≥8 | |||||
| 4 | Breakdown voltage | Non-bending | KV | ≥7 | ≥11 | ≥13 | |
| After bending | ≥6 | ≥9 | ≥12 | ||||
| 5 | Normal adhesion | 一 | No stratification | ||||
| 6 | Thermal adhesion(200±2C10min) | - | No delamination,no blister,no glue flow | ||||
| 7 | Long-term heat resistance index,temperatureindex(TI) | ℃ | ≥180 | ||||
| 8 | Storage life | Month | 12 | ||||
Product advantages
| Characteristic | Description |
|---|---|
| Heat resistance class | Class H (can withstand high temperature of 180°C for a long time) |
| Electrical insulation | High breakdown voltage and excellent insulation stability |
| Strong mechanical properties | High tensile strength and tear resistance, suitable for automatic wrapping equipment |
| Good flexibility | Can adapt to the wrapping of complex electrical structures and the forming of slot insulation |
| Strong chemical resistance | High stability to most solvents, paints and oils |
| Stable thickness | Uniform composite, flat surface, suitable for high-speed die-cutting and automatic wire wrapping |

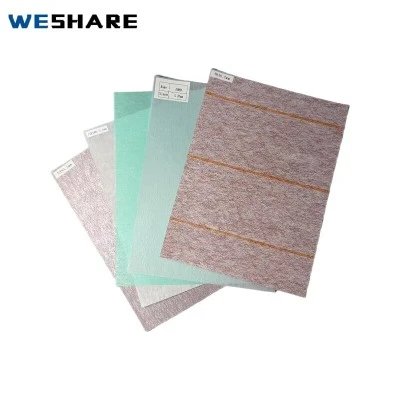

product Display
