Products Description

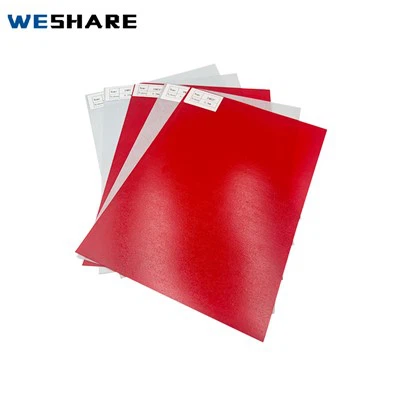

Composite Material DMD Insulation Paper is a three-layer flexible composite material, produced by using B-class adhesive to adhere the two faces of high-melt-point polyester film with hot-rolled non-woven polyester fabric.
Thickness: 0.18mm-0.45mm
Temperature resistance: 130/155℃
Packing: film + wooden box + pallet
|
Nominal thickness |
mm |
0.18 |
0.20 |
0.23 |
0.25 |
0.30 |
0.35 |
0.40 |
0.45 |
||||
|
stretch strength (not lower than) |
portrait |
No bending |
N/10mm Width |
100 |
120 |
130 |
150 |
170 |
200 |
300 |
340 |
||
|
After bending |
90 |
105 |
115 |
130 |
150 |
180 |
220 |
330 |
|||||
|
Horizontal |
No bending |
90 |
105 |
115 |
130 |
150 |
180 |
220 |
300 |
||||
|
After bending |
70 |
95 |
100 |
120 |
130 |
160 |
200 |
220 |
|||||
|
Elongation (not lower than) |
portrait |
No bending |
% |
10 |
|||||||||
|
After bending |
10 |
5 |
3 |
||||||||||
|
Horizontal |
No bending |
15 |
|||||||||||
|
After bending |
15 |
5 |
2 |
||||||||||
|
Breakdown voltage |
KV |
7 |
8 |
10 |
11 |
13 |
16 |
19 |
|||||
Why choose us?
1. Stable and reliable insulation performance
DMD insulation paper has passed international/national standards such as IEC 60626 and GB/T 5591.3, ensuring that it has high dielectric strength, low moisture absorption, and good voltage resistance (we provide SGS third-party product test report).
The dielectric strength reaches ≥ 50kV/mm, which can effectively prevent inter-turn breakdown and is suitable for core equipment such as transformers and motors.
2. High-quality raw material control, three-layer composite is more solid
Select high-quality domestic polyester film (PET) and polyester non-woven fabric, which are tightly laminated, without delamination, powder loss, and warping, and still maintain structural stability under high temperature and mechanical processing environment.
3. Support epoxy pre-preg and hot press curing version (customized)
Provide epoxy pre-preg DMD (B-stage epoxy DMD), which is suitable for hot press curing process, enhances the bonding force with the coil, and improves the overall heat resistance and mechanical strength.
Meet customers' high-end application needs for dry-type transformers and high-temperature resistant motors.
4. Wide range of temperature resistance grades (Class B, F)
Two versions with heat resistance grades of 130°C (Class B) and 155°C (Class F) are available to meet different working conditions and equipment life requirements.
5. Comprehensive customization services, size, thickness, and adhesive can be customized
Product display
video
Application
Composite Material DMD Insulation Paper is used in low-voltage motors, power tools, and electrical appliances for slot insulation, pad insulation, inter-turn insulation, slot wedge insulation, and interlayer insulation of transformers.
