Description

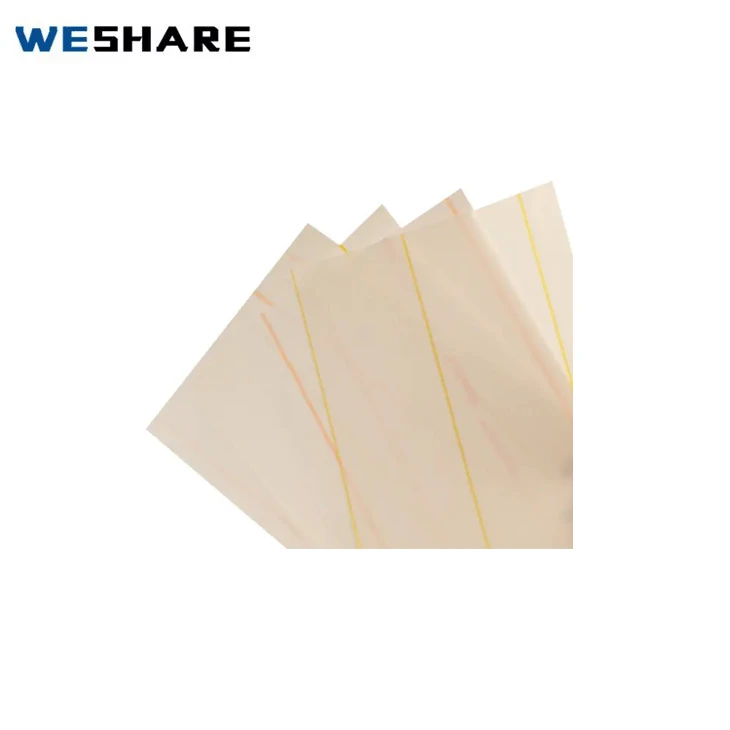

Product name:AMA Insulation Paper
Minimum order quantity: 100KG
Sample: We provide it to customers free of charge, and the shipping cost needs to be borne by the customer
Raw materials: Domestic aramid paper + Polyester Film+ domestic aramid paper
Structure: 3 layers
Heat resistance: Normally it is Class B heat resistance, and the thickness will vary. Please contact our sales for confirmation
Nominal thcikness：0.15mm,0.19mm,0.25mm
Nominal width：1000mm
|
(No.) |
(Property) |
(Unit) |
(Requirement) |
|||
|
1 |
(Nominal thickness) |
mm |
0.15 |
0.19 |
0.25 |
|
|
2 |
(Tensile strength) |
(Before bending MD) |
Mpa |
≥140 |
≥140 |
≥140 |
|
(Before bending CD) |
≥140 |
≥140 |
≥140 |
|||
|
3 |
(Elongation) |
(MD) |
% |
≥80 |
||
|
(CD) |
≥80 |
|||||
|
4 |
(Breakdown voltage) |
(Before bending) |
V/μm |
200 |
190 |
170 |
|
5 |
Temperature |
℃ |
≥120 |
|||
why choose US?
1. High-quality raw materials to ensure stable insulation performance
We use high-quality domestic aramid paper and non-woven fabrics to ensure that the products have high dielectric strength (>6kV), thermal grade B (130℃) and good mechanical strength. The adhesive layer is firmly bonded and does not delaminate or bubble during hot pressing and winding.
2. Strict production control and testing process
The products comply with international electrical insulation standards such as IEC 60216 and GB/T 5591.3. (We provide product quality inspection sheets and UL/SGS certification certificates)
AMA insulation paper has undergone multiple tests such as thickness, electrical strength, thermal aging, oil absorption, etc. to ensure batch stability.
3. Support customized size and thickness to meet various application requirements
Provide conventional thickness: 0.13-0.50mm
Can be cut into different widths and reel lengths according to customer needs
product display
Application
FAQ
Q:What are the classes of insulation paper?
A:Class Y Insulating Materials- 90°C. ...
Class A Insulating Materials – 105°C. ...
Class E Insulating Materials – 120°C. ...
Class B Insulating Materials – 130°C. ...
Class F Insulating Materials – 155°C. ...
Class H Insulating Materials – 180°C. ...
Class C Insulating Materials – >180°C.
who are we?
We are based in hangzhou, China, start from 2005,sell to Domestic Market(90.00%),Southeast Asia(10.00%). There are total about 51-100 people in our office.
how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
why should you buy from us not from other suppliers?
Founded in 2005, the company is a national high-tech enterprise. We have an experienced technical team.
