Products Description
Composite Type Insulator is a fixed insulation device specially used for power distribution lines. It is baked with porcelain clay and has a gray glaze layer on the surface to improve pollution resistance and weather resistance. It is usually installed on the cross arm of the pole to directly support the conductor and play an electrical insulation role.
Conditions of Use：
Ambient temperature: -40°C to +40°C
Altitude: no higher than 1500 meters
AC power frequency: no more than 100HZ
Maximum wind speed: no more than 35m/s
Earthquake intensity: no more than eight
Note：
Composite Type Insulator Minimum order quantity: 1 piece
Product packaging: Conventional packaging is film + wooden box + pallet, we accept buyers to customize packaging requirements
Product specifications: We provide conventional series, ANSI, DIN series, and also accept drawing customization
Mold cost: free
Delivery time: 15-20 days
Sample delivery time: 2-5 days (samples are provided free of charge)
| Type | Rated voltage/ kv | Specified mechanical load kN (tensile) | Specified mechanical load kN (bending) | Structure height(m) | Minimum arc distance (mm ) | Creepage distance (mm) | Lighting withstand voltage | Wet power frequency voltage |
|---|---|---|---|---|---|---|---|---|
| FPQ-10/5 | 10 | 10 | 5 | 215 | 145 | 350 | 90 | 40 |
| FPQ-10/5 | 10 | 10 | 5 | 245 | 155 | 400 | 90 | 40 |
| FPQ-10/5 | 10 | 10 | 5 | 285 | 165 | 450 | 90 | 40 |
| FPQ-20/8 | 20 | 12 | 8 | 420 | 248 | 630 | 170 | 75 |
Product display

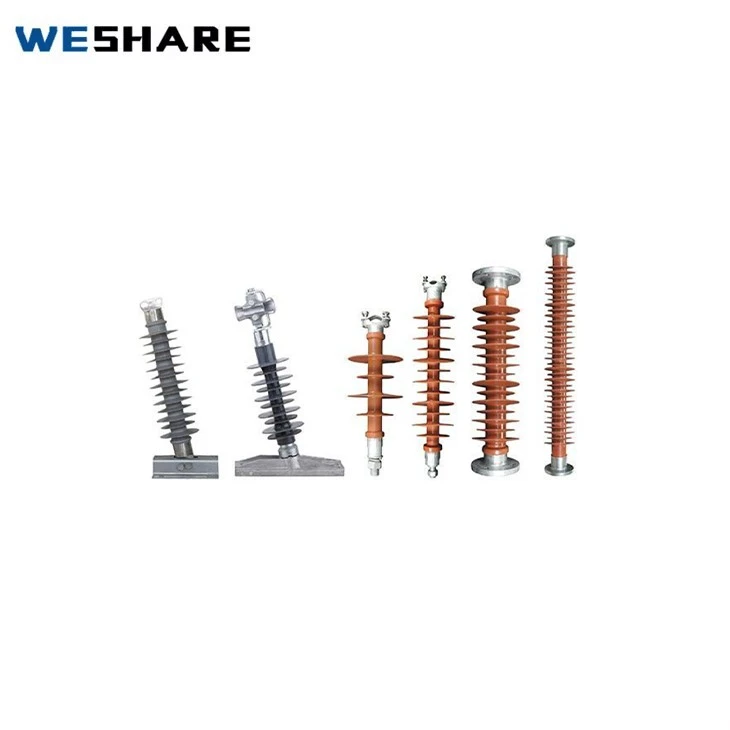

Note: The different colors are due to inconsistent surface coating colors.
factory display
