Products Description

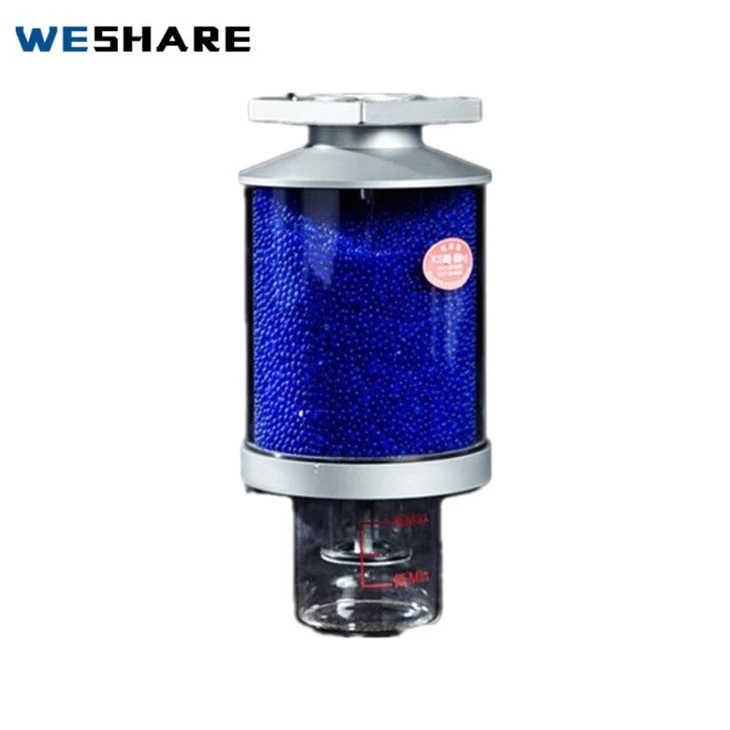

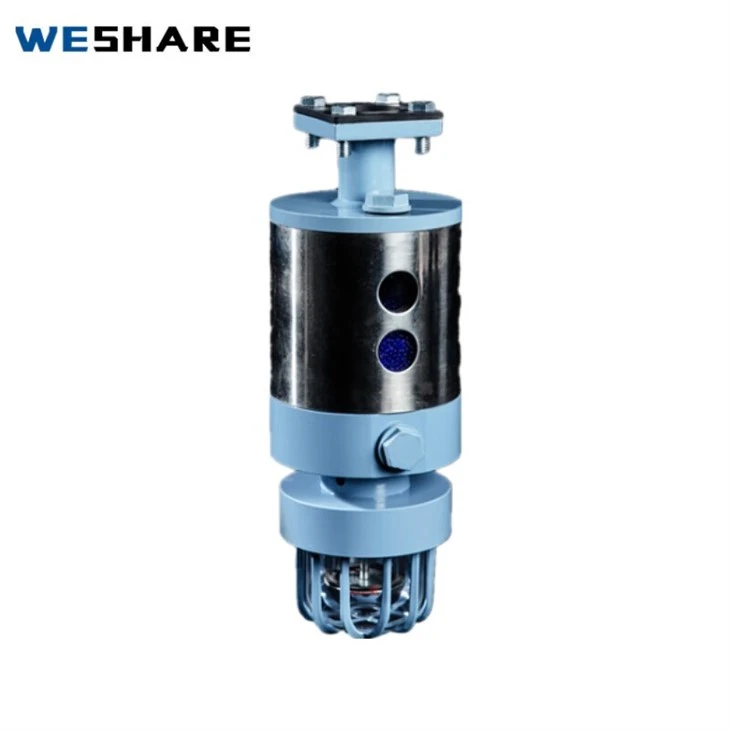

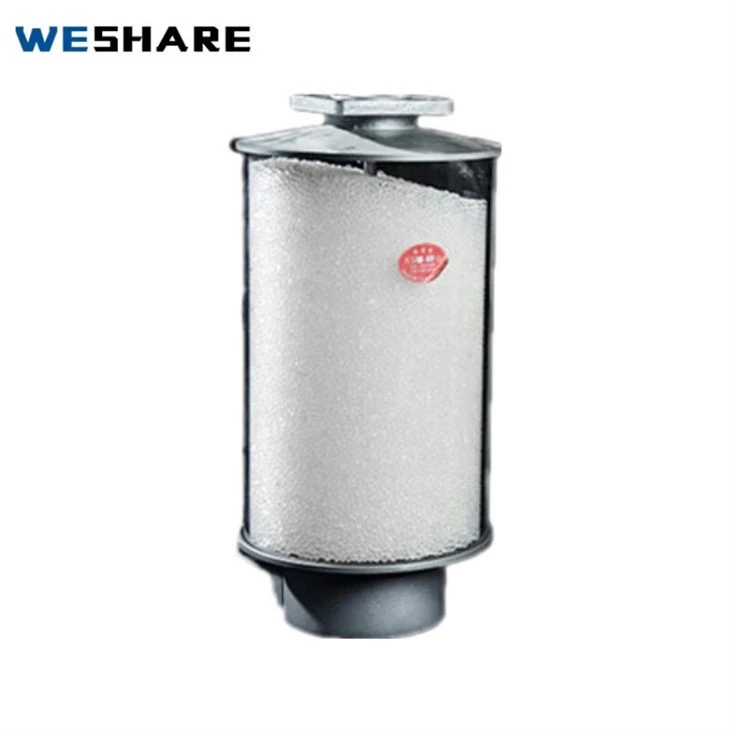

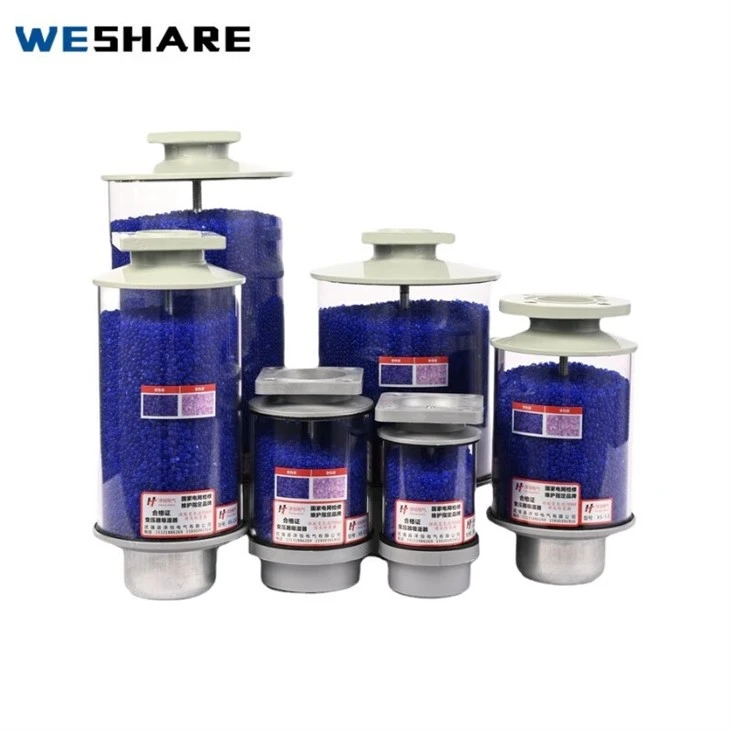

The transformer moisture absorber is usually installed on the air inlet of the oil conservator and is connected to the upper space of the oil conservator through a metal pipe.
When the transformer oil temperature changes, the oil level in the oil conservator rises and falls, causing the air volume in the cabinet to change. When the oil level rises, part of the air in the cabinet is discharged to the atmosphere through the moisture absorber; when the oil level drops, there is insufficient air in the cabinet and air needs to be sucked in from the atmosphere. At this time, the air is sucked in through the silica gel desiccant in the moisture absorber, and the silica gel absorbs it. Remove the moisture in it, thereby filtering the moisture in the air and preventing the aging of the transformer insulating oil.
Product minimum order quantity: 10 pieces
Product packaging: wooden box + pallet
Product transportation method: according to customer needs (support air transportation, sea transportation)
Maintenance of transformer moisture absorber
Regular oil changes: The transformer oil in the oil container of the moisture absorber needs to be replaced regularly to maintain its filtering and moisture absorption function.
Check the silica gel: During the inspection and regular inspection of the transformer, workers need to check whether the desiccant in the moisture absorber has deliquesced and changed color. If it has changed color, the desiccant needs to be replaced.
Check components: Workers need to check whether the desiccant filter in the moisture absorber is complete. If it is damaged, it can be replaced with two layers of silk and iron screens. At the same time, workers need to check whether the connections between the components of the moisture absorber are tight and whether there is leakage.
Product advantages
Functional aspects:
It has the advantages of air purification and dehumidification: effectively filters out impurities and moisture in the air, keeping the transformer oil clean and dielectric strength.
It has the advantage of preventing the transformer from getting damp: preventing the transformer oil from getting damp and deteriorating, protecting the safe and economical operation of the transformer, and extending the service life of the transformer.
Quality:
With a long service life, we provide product quality inspection sheets and factory certification of products.
Why choose us
1.20 years of transformer accessories manufacturer, providing one-stop solution for transformer accessories
2. Product quality assurance, providing factory certification of products
3. Provide free samples
4. Provide foreign local technical support
FAQ
1/Do you only make one product: transformer moisture absorber? I also need other transformer accessories, can you provide them?
A: Of course, we provide a full range of transformer accessories. You can contact us for sales to get a more complete product catalog.
2/Do you have detailed drawings of the product? I need one.
A: Yes, please contact us to get drawings and quotations.
3/Do you have a transformer moisture absorber with white silica gel particles?
A: Yes, you can search on our website or contact our sales to get a quote.
