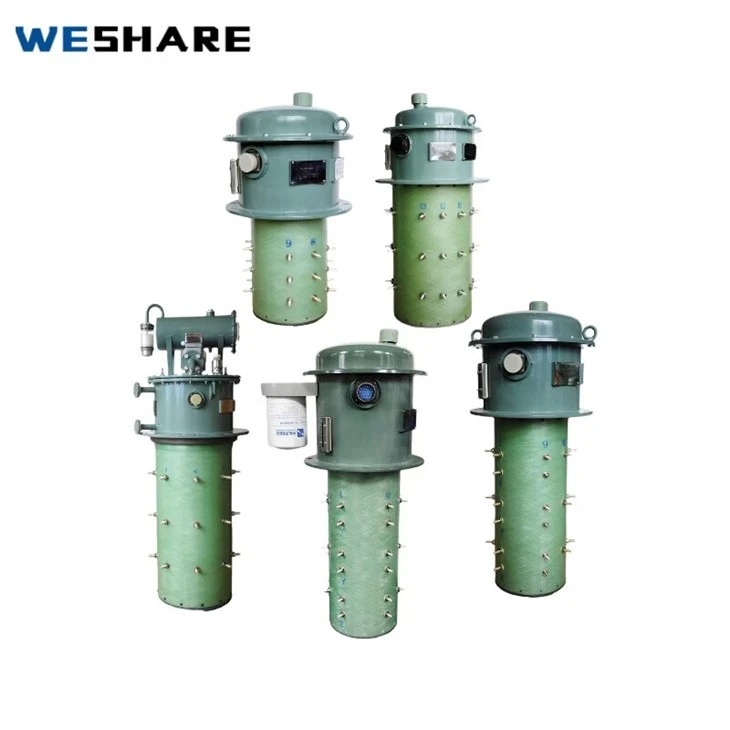

Name:Load Tap Changers For Transformers
Load Tap Changers (LTC) are designed to adjust transformer voltage ratios while the transformer remains energized, ensuring continuous voltage regulation without interrupting power supply.
They are essential for oil-immersed power transformers, distribution transformers, and industrial transformer systems, providing stable voltage, low energy loss, and operational safety.
LTCs are available in on-load (OLTC) or vacuum / oil-insulated designs, suitable for different voltage levels and power ratings.
Applications
-Oil-immersed distribution transformers
-Power transformers in substations
-Industrial transformer systems
-Renewable energy transformers (wind, solar)
-HV / MV grid voltage regulation
Drawing
On-load tap changer voltage regulation schematic diagram
On-load tap changer controller installation dimensions
On-load tap changer outline and installation diagram
parameters
Type of tap-changer |
Rated current |
Highest voltage for equipment |
Install dimension(mm) |
Holes on tank cover |
|||||
| H1 | H2 | H3 | H4 | Md | φD | ||||
| FⅢ-125/12-05050 | 125 | 12 | 120 | 66 | 336 | 682 | M8 | φ294 | φ310 |
| FⅢ₁-125/12-07070 | 125 | 12 | 120 | 66 | 336 | 682 | M8 | φ294 | φ310 |
| FⅢ₁-125/12-09090 | 125 | 12 | 120 | 66 | 336 | 682 | M8 | φ294 | Φ310 |
| FⅢ -200/12-05050 | 200 | 12 | 120 | 66 | 336 | 682 | M10 | φ300 | φ310 |
| FⅢ₁-200/12-07070 | 200 | 12 | 120 | 66 | 336 | 682 | M10 | φ300 | φ310 |
| FⅢ₁-200/12-09090 | 200 | 12 | 120 | 66 | 336 | 682 | M10 | φ300 | φ310 |
| FJⅢ -125/12-06050 | 125 | 12 | 120 | 100 | 408 | 758 | M8 | φ294 | φ310 |
| FJⅢ -200/12-06050 | 200 | 12 | 120 | 100 | 408 | 758 | M10 | φ300 | φ310 |
| FJⅢ₄-125/12-08070 | 125 | 12 | 120 | 100 | 408 | 758 | M8 | φ294 | φ310 |
| FJⅢ -200/12-08070 | 200 | 12 | 120 | 100 | 408 | 758 | M10 | φ300 | φ310 |
