Products Description

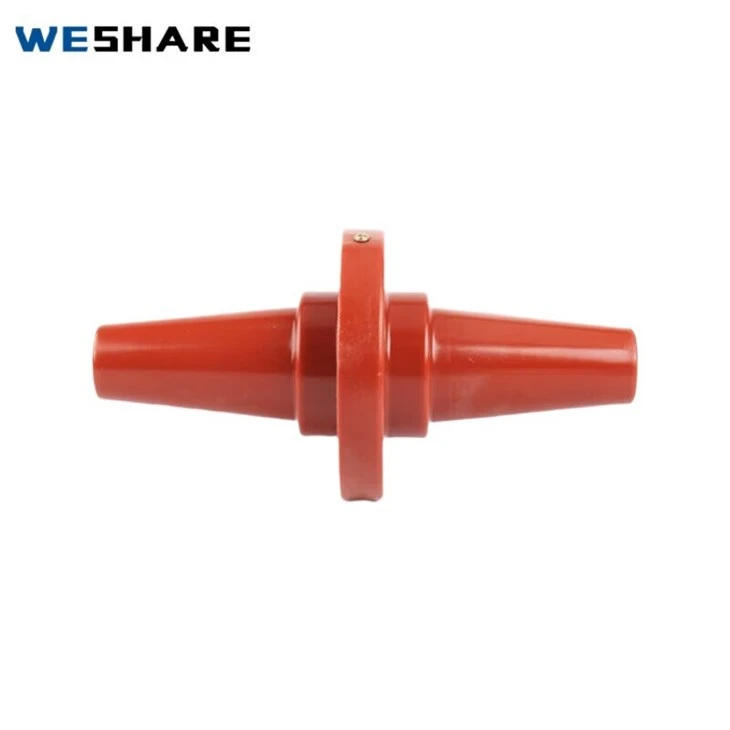

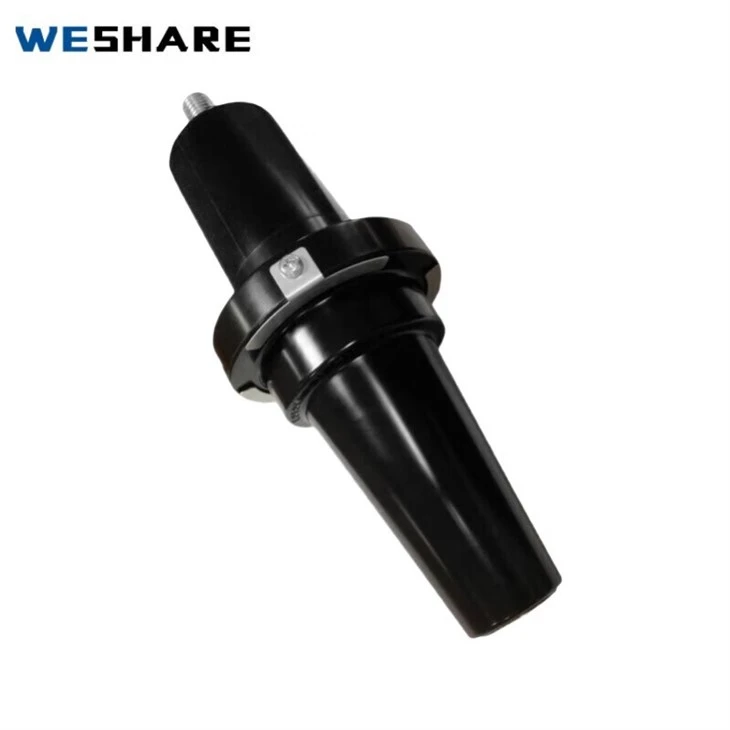

35kV 600A Deadbreak Bushing With 150kV BIL is a pluggable cable connection bushing (Bush head) used in medium and high voltage power systems to achieve high reliability connection between cables and equipment such as transformers, ring main units, circuit breakers, etc. It is designed to withstand high voltage surges and is suitable for harsh outdoor and underground power grid environments.
Product name:35kV 600A Deadbreak Bushing With 150kV BIL
Minimum order quantity: 10 pieces
Samples: Free, freight to be borne by customers
Price: EXW
Payment method: T/T
Freight: Sea/Air
Precautions for use：
- Plug and unplug in the power-off state to prevent arcing or short circuit caused by live operation
- Semi-conductive shielding material is used inside to prevent partial discharge and electric field accumulation
- Can be used with load switches and elbow-type cable heads
Product parameters
|
Voltage and Current Ratings |
35kV Class |
|
Operating Voltage |
|
|
Maximum Phase - to - Ground |
21.1kV |
|
Withstand Voltage |
|
|
AC: 60Hz, 60 sec |
50kV |
|
DC: 15 minutes |
103kV |
|
Impulse Voltage Withstand |
150kV |
|
BIL and Full Wave Crest |
|
|
Corona Extinction Level |
|
|
< 3pC |
26kV |
|
Continuous Current |
600Amp |
|
Short Time Current |
25kA rms, sym. 0.17s |
|
Type Number |
EOB361 |
Product advantages
| Advantage Category | Description |
|---|---|
| High Insulation Level | Supports 150kV lightning impulse voltage withstand, meeting IEC/IEEE standards |
| Safe and Reliable | Deadbreak design for safer operation and prevention of live plugging and unplugging |
| High Current Carrying Capacity | Supports 600A current, suitable for high - power cables or equipment |
| Plug - in Design | Enables quick installation/maintenance, no need for bolt fixing, reducing operation and maintenance costs |
| Compatible with Elbow - type Connectors | Can be matched with standard accessories such as 200A/600A elbow - type plugs and cable terminations |
Application
Medium voltage distribution transformers, 35kV ring network cabinets, underground cable systems, high reliability distribution stations, high humidity, high altitude and other harsh environments
Why choose us
The product is suitable for high temperature, high humidity and high corrosion on-site environment
-We have batch delivery and customization capabilities
-We have complete export certifications (CE, IEC, ISO)
-We have long-term supply guarantee for spare parts
-We provide supporting installation guidance and local on-site technical support
