Description

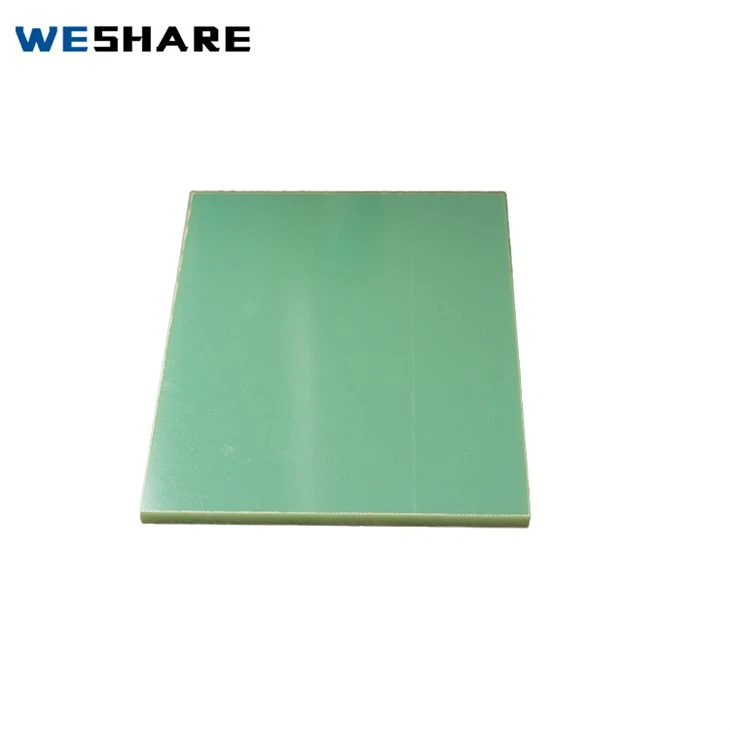

Epoxy Glass Cloth Laminate Description

•Type :FR4 epoxy glass cloth laminate

•Specifiation:With high mechanical strength at temperature 150℃, good electrical properties under dry and humidity conditions

•Temperature grade: F glass (155℃)

•Color: nature, green

•Thickness: 0.5-80mm

•Size: 1020x1220mm 1020x2040mm 1220x2470mm

Properties	UNITS	STARND VALUE
Flexural Strength Perpendicular to Laminations ≥	Mpa	340
Insulation resistance after immersion in water (D-24/23) ≥	Ω	5.0X108
Dielectric strength perpendicular laminations (in 90±2℃ transformer oil, 1 mm in thickness) ≥	MV/m	11.8
Breakdown voltage parallel laminations (in 90±2℃ transformer oil) ≥	kV	40
Permittivity(48-62Hz) ≤	---	5.5
Permittivity(1MHz) ≤	---	5.5
Dissipation factor(48-62Hz) ≤	---	0.04
Dissipation factor(1MHz) ≤	---	0.04
Density	g/c m3	(1.70-1.90)
Water absorption(D-24/23,1.6mm in thickness) ≤	mg	20

FR4 is a glass fiber reinforced epoxy resin laminate, the full name of which is Flame Retardant 4. It is made of glass fiber cloth impregnated with epoxy resin and formed by hot pressing. It has excellent insulation, mechanical strength and flame retardant properties.

Application

PCB circuit board substrate: This is the most widely used application of FR4
Motor insulation parts: motor slot wedges, partitions, etc
Transformer insulation brackets
Insulation partitions for high-voltage electrical equipment
Structural support parts in laser/mechanical equipment
Tooling fixtures/gauging tools/mold base plates
Flame-retardant structural panels for aviation and rail transportation

certificate

product-1-1

Customer

Product advantages

Epoxy glass cloth laminate has high mechanical strength and electrical properties, and good moisture resistance.

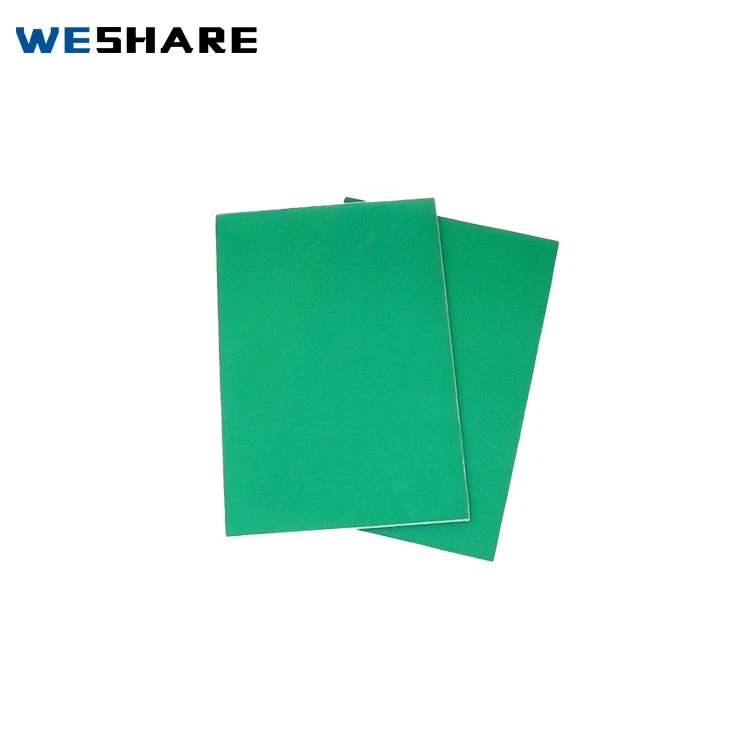

Product Display

Packing

epoxy glass cloth laminate packaged in wooden crates, wooden framed cases or other strong enough materials covered with moisture-proof materialoutside.Gross weight of each package not exceeds 3000kgs.

Application scenarios

Epoxy Glass Cloth Laminate used for making insulating parts in electrical, electronical and other industries.

About us

-24 hours a day online.

-Professional customized service.

-Quality after-sales service.

-Strict control of product quality.

Factory Display

FAQ

Q: Can you provide sample?

A: Yes, sample is free but the buyer needs to pay courier cost, if we can start business, we shall return the freight.

Q: Can I visit your factory?

A: Warmly welcome. Once we have your schedule, we will arrange the professional sales team to follow your case.

Q: How can I LOCK PRICE?

A: Our perfessional operation team will offer you a proposal based on your requirments, for more details, please contact our online service.

Q: Can me be a distributor of your steel material?

A: Yes! Of course.You can benifit from price discount, marketing protection & support and after sale service.

What's your delivery time?
It depends on the quantity, normally about 20-30days but we should deliver as soon as possible.
