Description
Tube M& P is a silicon bonded Muscovite or Phlogopite mica tube, a hard pipeinsulating material prepared by using Muscovite or Phlogopite mica paper With silicon bond agent and then processed by rolling.
Standard supply
Customized dimension according to customer's drawing or requirements.
Storage
Two years quality guarantee from production date, under proper storage withtemperature ≤40'C and humidity >60% with CDMICA original package.
|
Item |
Unit |
Muscovite mica tube |
Phlogopite mica tube |
Test Procedure |
|
|
Mica Paper |
Muscovite |
Phlogopite |
|||
|
Mica Content |
% |
≈85 |
≈85 |
IEC 60371-2 |
|
|
Bond Centent |
% |
≈15 |
≈15 |
IEC 60371-2 |
|
|
Density |
g/cm3 |
1.6-2.2 |
1.6-2.2 |
IEC 60371-2 |
|
|
Heat Resistance |
Continuous Services |
℃ |
500 |
700 |
|
|
Intermittent Services |
℃ |
800 |
1000 |
||
|
Heat Loss at 500℃ |
% |
﹤1 |
﹤1 |
IEC 60371-2 |
|
|
Heat Loss at 700℃ |
% |
﹤2 |
﹤2 |
IEC 60371-2 |
|
|
Dielectric Strength |
kV/mm |
﹥1.5 |
﹥1.5 |
IEC 60243-1 |
|
|
Insulation Resistance at 23℃ |
Ω·cm |
1016 |
1016 |
IEC 60243-1 |
|
|
Flame Resistance |
- |
UL94 V-0 |
UL94 V-0 |
UL94 |
|
Product advantages
- Excellent high temperature resistance
Common mica tubes can work stably for a long time in a high temperature environment of 500°C to 800°C. Some high-performance mica tubes (such as muscovite) can even withstand high temperatures of more than 1000°C.
Especially suitable for high temperature heaters, hot air guns, industrial electric furnaces and other scenarios.
certificate
Customer
product display
packing

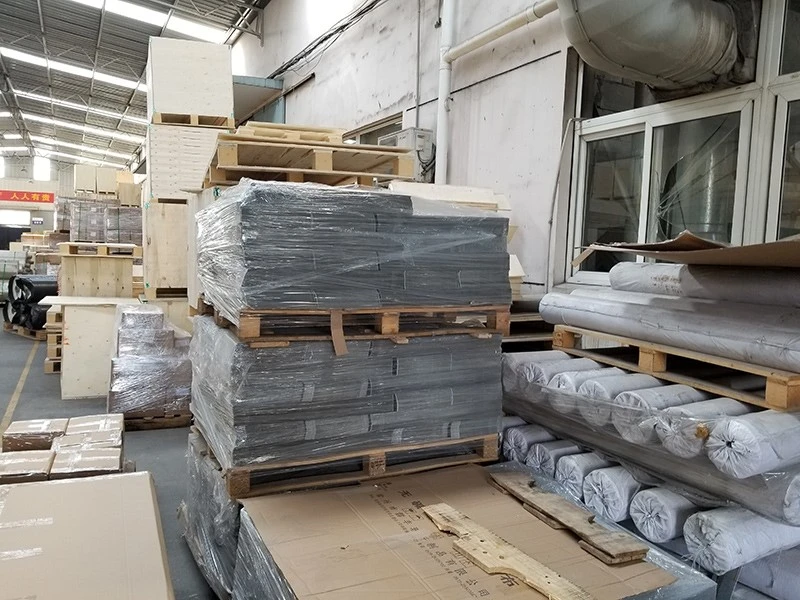

factory display
FAQ
Q: What is the lead time?
A: Usually we will complete the delivery within 7 days after your order.
Q: Can i get some samples for testing before placing order?
A: Yes, we can provide you some free samples for your testing if you would like to accept the transportation fee.
Q: Can you make other sizes and packages for this product?
A: Yes, we can make customized sizes and packages based on your requirements. If you need your own packages, you'd better specific your requirement before you place your order.
