Products Description

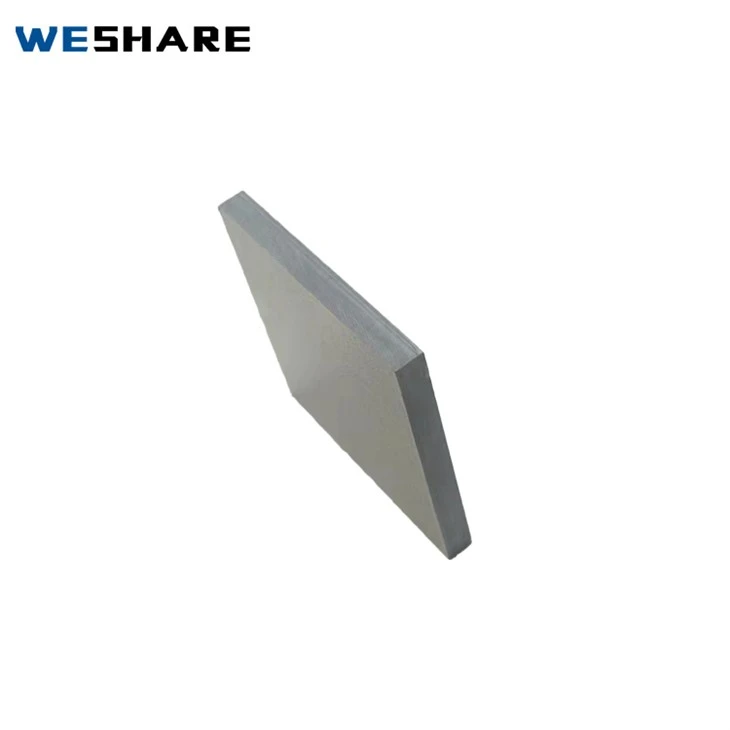

Thin Mica Sheet comes in the form of rigid laminated sheet after laminating, pressing and baking process, consists of quality muscovite,phlogopite or synthetic mica paper impregnated with high temperature resistant organic silicon resin as binding agent.
Material composition: Phlogopite/Muscovite/Synthetic Mica
Thickness: 0.1mm-50mm
Thin Mica Sheet Width: Customizable
Thin Mica Sheet Color: Gold/White/Transparent
Temperature range: 500°C-1000°C Temperature resistance up to 1000°C (ASTM D619 test)
Breakdown voltage strength ≥20kV/mm (IEC 60243 standard)
Sample: Free
Packaging: Film + Wooden Box + Pallet
Logo: Customizable
Logistics: Sea/Air
product type1
| Dimension | Rigid Mica Plate | Flexible Mica Plate |
|---|---|---|
| Structure | Rigid plate, non - bendable | Can be curled and folded (with glass fiber/silicone added) |
| Strength | High compressive strength (> 200MPa) | High tensile strength (> 100N/cm) |
| Application Scenarios | - Insulation for motor stators - Structural support for high - voltage switches - Insulation plates for molds |
- Heating elements for electric blankets - Substrates for flexible circuits - Coating layers for non - standard shaped equipment |
| Application Differences | Used in fixed scenarios requiring structural support |
Suitable for dynamic or complex - shaped requirements
|
product type 2
| Dimension | Phlogopite Mica Plate | Muscovite Mica Plate |
|---|---|---|
| Composition | Contains magnesium and iron, golden - yellow in color | Contains potassium and aluminum, silver - white/transparent in color |
| Temperature Resistance | Higher (800 - 1000°C) | Lower (500 - 600°C) |
| Insulation | Excellent, but slightly inferior to muscovite | Superior (stable dielectric constant) |
| Cost | Higher |
Lower
|
Note:We can provide all of the above products.
Display
video
Packing
Thin Mica Sheet packaged in wooden crates, wooden framed cases or other strong enough materials covered with moisture-proof materialoutside.Gross weight of each package not exceeds 3000kgs.
Factory Display
certificate
