Product Description

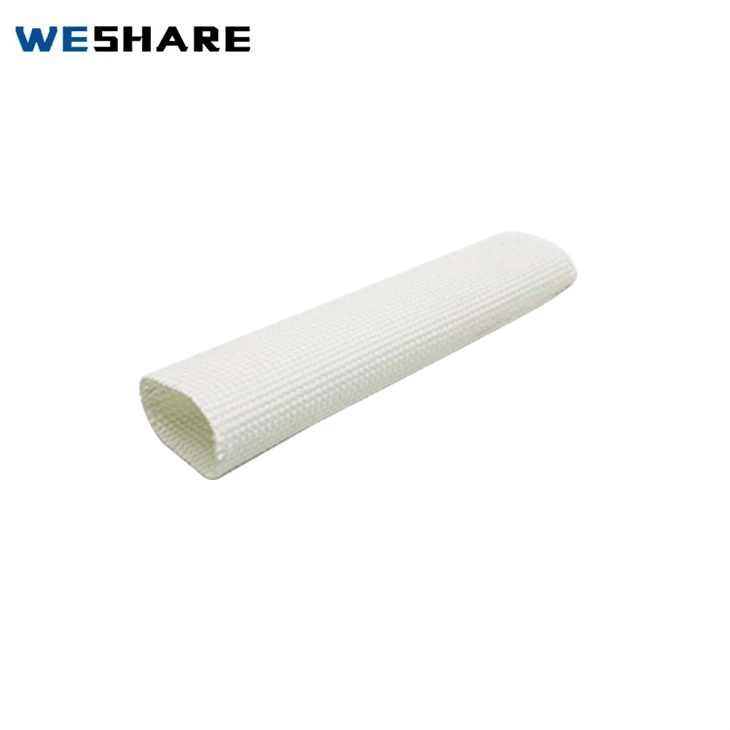

Silicone Fiberglass Tube made of alkali-free glass fiber braided layer as the base material and covered with high-temperature vulcanized silicone rubber, used for wire and cable protection in high-temperature and corrosive environments (such as motors, automobiles, aerospace, etc.).
Core structure:
- Inner layer: high-purity E-glass fiber braiding (temperature resistance > 500℃).
- Outer layer: silicone rubber coating (thickness 0.3-0.5mm, customizable).
|
Breakdown voltage(V) |
Volume resistivity |
Temperature resistant |
Flame retardancy |
|
|
average value |
lowest value |
(Ω.cm) |
||
|
1500 |
1000 |
1011 |
-40℃～220℃ |
E499455 |
|
2500 |
2000 |
VW-1 |
||
|
4000 |
3000 |
|||
Note：
Silicone Fiberglass Tube Key Standard Certifications
We have used UL 1441 (standard for insulating sleeves for wires and cables), RoHS 2.0 (environmental certification), and GB/T 7113 (domestic insulating hose standard).
Core performance advantages
- High temperature resistance: continuous working temperature -60℃~+200℃, short-term temperature resistance can reach +300℃ (UL thermal aging test report is required).
- Insulation performance: volume resistivity ≥1×10¹⁴Ω·cm (ASTM D257 test data).
- Flexibility: bending radius ≤3 times the sleeve diameter (compared with PVC sleeve, it needs to be ≥5 times).
- Corrosion resistance: passed the 48h salt spray test (ASTM B117) without cracking or delamination.
- Flame retardancy: UL VW-1 vertical burning grade (compared with HB grade of ordinary silicone sleeve).

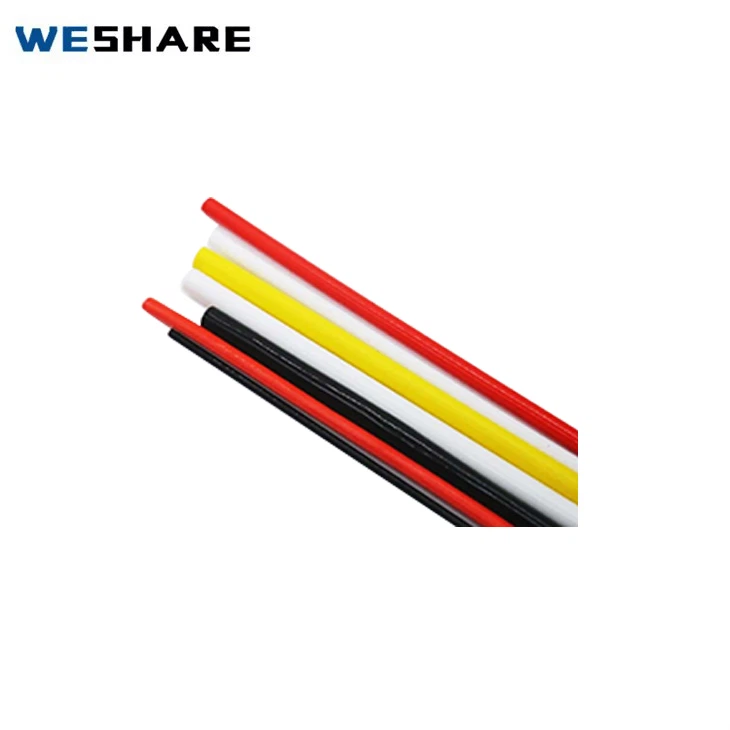

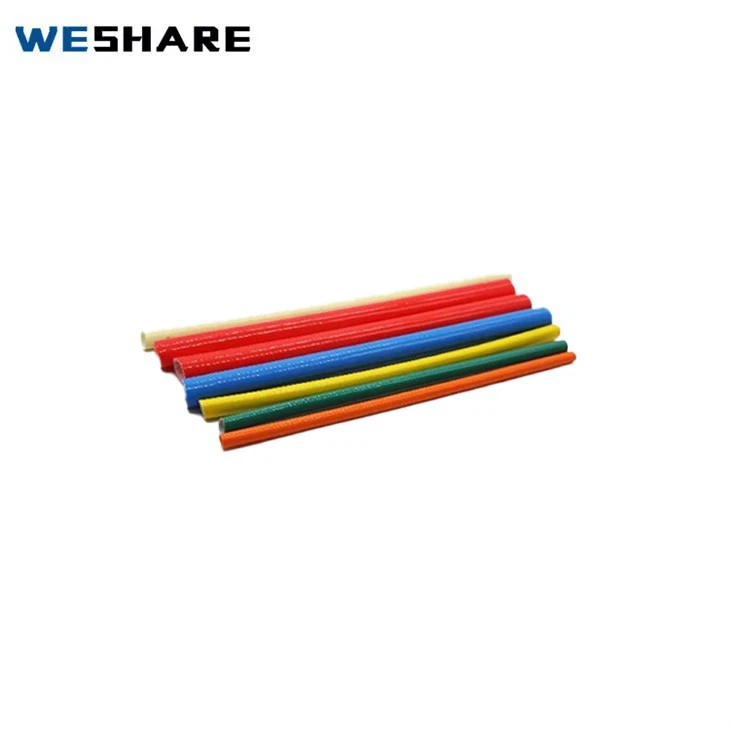

Product display
company advantage
FAQ
Q: What is the lead time?
A: Usually we will complete the delivery within 7 days after your order.
Q: Can i get some samples for testing before placing order?
A: Yes, we can provide you some free samples for your testing if you would like to accept the transportation fee.
Q: Can you make other sizes and packages for this product?
A: Yes, we can make customized sizes and packages based on your requirements. If you need your own packages, you'd better specific your requirement before you place your order.
Q: Will you accept us to visit you?
A: It's our pleasure to have your visiting. It only takes 2 hours from Shanghai to out city.
Q: What kind of information we need before place your order?
A: Thickness, Width, Length, Application, Adhesive type
Q: What is the delivery service?
A: Sample order will be shipped by Express, such as DHL, fedEx, UPS, TNT, EMS, etc; Heavy weight goods will be shipped by sea. About 15 to 30days according different country.
