Description
Description
Electrical Insulated PMP is a double-sided composite material made of polyester film coated with adhesive on one side and pasted with insulating cardboard .
Nominal thcikness：0.15mm 0.17mm,0.20mm,0.22mm,0.25mm,0.27mm,0.30mm,0.35mm
Nominal width： 840mm, 420mm
| Item | Unit | Indicator value | |||||||||
| Nominal thickness | mm | 0.15 | 0.17 | 0.20 | 0.22 | 0.25 | 0.27 | 0.30 | 0.35 | ||
| Quantitative | g/m² | 200 | 215 | 260 | 275 | 315 | 330 | 360 | 415 | ||
| Tensile strength | Vertical | Not bent | N/10mm | 140 | 170 | 210 | 240 | 280 | 290 | 320 | 350 |
| After bending | 85 | 88 | 130 | 140 | 140 | 150 | 180 | 210 | |||
| Horizontal | Not bent | 102 | 110 | 135 | 140 | 158 | 155 | 170 | 200 | ||
| After bending | 80 | 85 | 100 | 100 | 100 | 100 | 100 | 150 | |||
| breakdown voltage | Not bent | kV | 8.5 | ||||||||
| After bending | kV | 7.5 | |||||||||
Product advantages
- Excellent raw materials: We use Class A capacitor paper as the base material of the Electrical Insulated PMP
- Excellent production process: Ensure that the material does not warp, bubble, or separate from the layers during high-temperature impregnation or winding, and the thickness tolerance is precisely controlled within ±0.005mm, which is particularly suitable for high-precision winding
- Certificate: The product complies with RoHS / REACH / UL safety and environmental protection requirements, and is equipped with MSDS, COA, material test report and other documents
product display

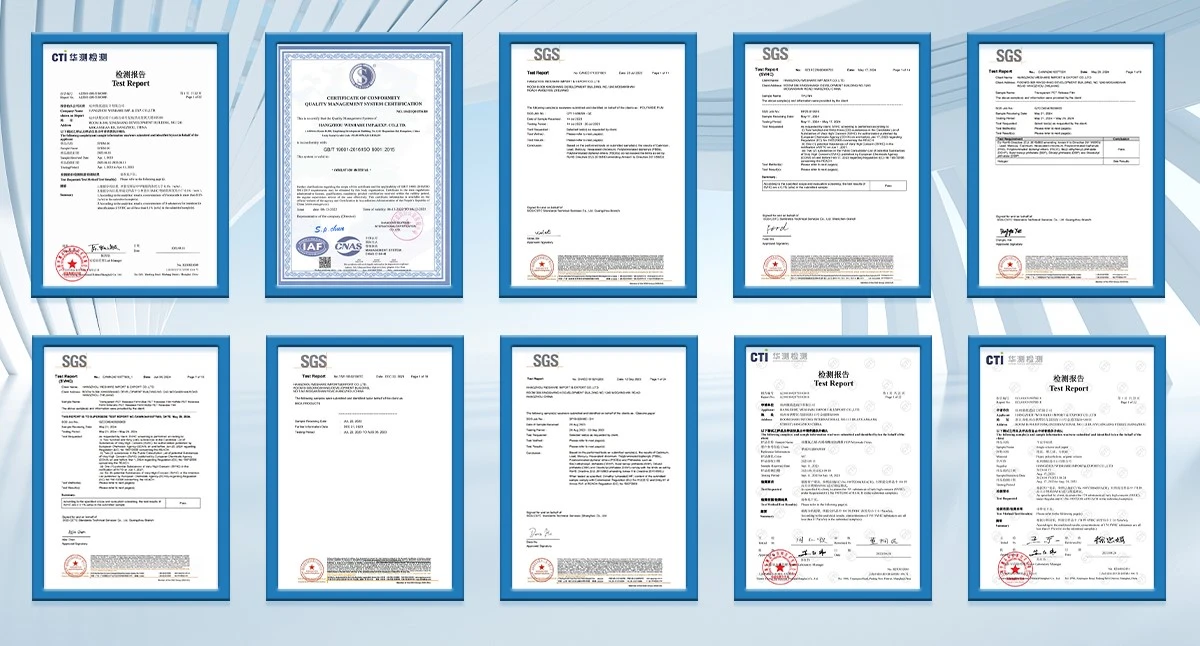

certificates
