Description

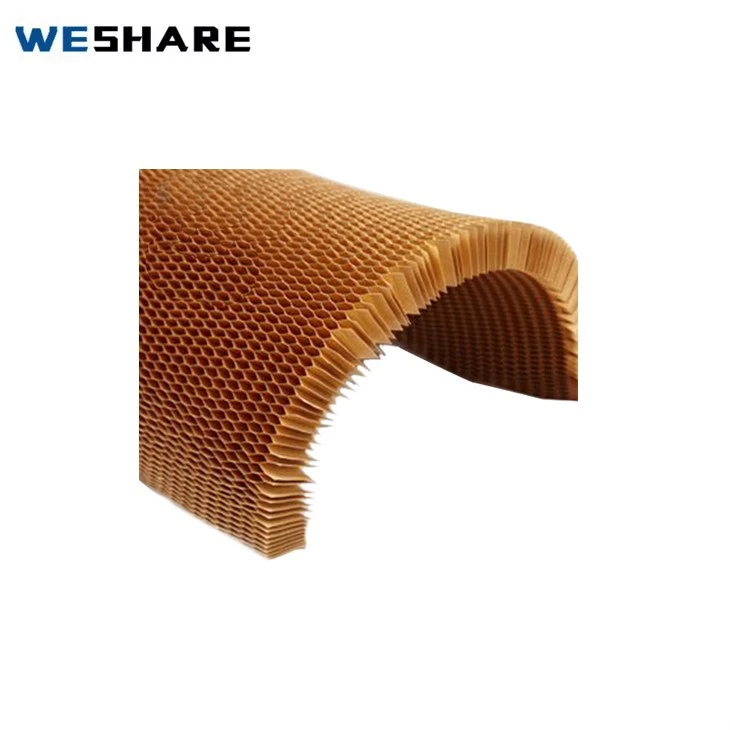

Aerospace Honeycomb Core：A lightweight, high-strength composite material with a hexagonal honeycomb structure made of meta-aramid fiber (Nomex®), which has ultra-high specific strength, high temperature resistance and flame retardant properties, and is specially used as a sandwich core material for aerospace, rail transportation and high-end equipment.
Aerospace Honeycomb Core Key parameters (according to ASTM C365/C393 standards):
- Density range: 24kg/m³~96kg/m³ (honeycomb aperture 1.8mm~12.7mm)
- Compression strength: ≥3.5MPa (density 48kg/m³, ASTM C365)
- Heat resistance: long-term temperature resistance 200℃, short-term temperature resistance 250℃
- Flame retardancy: UL94 V-0 (self-extinguishing time <5 seconds)
|
Core type |
Density |
Stab.comp.str (Mpa) |
L Shear Properties(Mpa) |
W Shear Properties(Mpa) |
|||||||
|
Strength |
Modulus |
Strength |
Modulus |
||||||||
|
Typ |
Min Ind |
Typ |
Min Ind |
Typ |
Min Ind |
Typ |
Min Ind |
Typ |
Min Ind |
||
|
ACT1-3.2-40 |
40 |
1.47 |
1.02 |
0.95 |
0.72 |
40.2 |
28.6 |
0.55 |
0.40 |
19.9 |
10.0 |
|
ACT1-3.2-48 |
48 |
2.31 |
1.67 |
1.22 |
1.02 |
45.1 |
36.4 |
0.70 |
0.50 |
25.5 |
15.0 |
|
ACT1-3.2-64 |
64 |
3.45 |
3.00 |
1.72 |
1.52 |
56.0 |
49.0 |
0.94 |
0.81 |
32.0 |
29.0 |
|
ACT1-4.8-40 |
40 |
1.74 |
1.61 |
0.95 |
0.90 |
34.4 |
29.9 |
0.56 |
0.53 |
21.6 |
19.8 |
|
ACT1-4.8-48 |
48 |
2.43 |
1.99 |
1.12 |
0.98 |
41.7 |
28.0 |
0.70 |
0.52 |
27.3 |
19.8 |
Product type and specification system
1/Honeycomb aperture:
Micropore type (1.8mm~3.2mm, suitable for precision instrument shock absorption)
Standard type (4.8mm~6.4mm, general structural core material)
Macropore type (9.5mm~12.7mm, used for ultra-lightweight components)
2/Functional treatment:
Phenolic impregnation (improved moisture and heat resistance, water absorption rate <0.8%)
Conductive coating (surface resistance <1Ω/sq, EMI shielding)
3/Conventional specifications:
Thickness: 5mm~50mm (tolerance ±0.1mm)
Panel width: 1200mm×2400mm (customizable slitting)
Product display
certificate
customer
FAQ
① How long is the delivery time?
Generally it is 15-20 days if polyimide film price is in stock, or it is 15-30 days.
② Which certification do you have?
The plant has passed the certificate of ISO 9001 quality system certification.The products have passed ROHS test.
③ Are you trading company or manufacturer?
We are manufacturer, having our own factories.
