Description

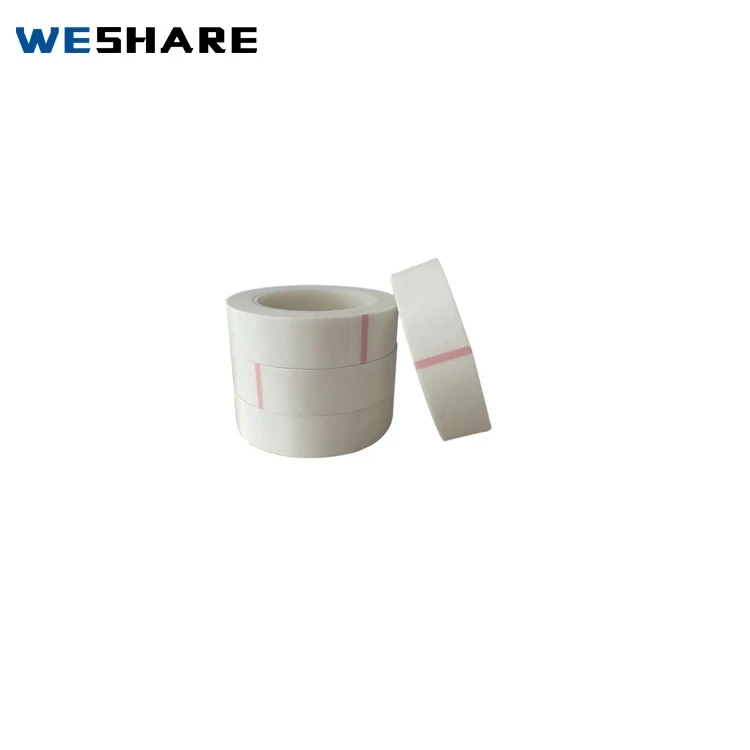

Pressure Sensitive Cloth Tape Made from alkali-free glass fiber cloth coated with high-temperature-resistant silicone, this industrial tape is used for high-temperature insulation, pipe wrapping, and electronic component protection.
Basic Parameters (ASTM D1000 Standard):
Temperature Range: -50℃ to 260℃ (short-term up to 300℃)
Pressure Sensitive Cloth Tape Thickness: 0.18mm ± 0.02mm (cloth thickness: 0.1mm + adhesive layer: 0.05mm)
Adhesion: ≥ 9N/25mm
|
Model |
Color |
Glue |
Thickness |
Adhesion |
Tensile Strength |
|
J-231 |
White |
Rubber |
0.18mm |
8 N/25mm |
500 N/25mm |
|
J-233 |
White |
Acrylic |
0.18mm |
10 N/25mm |
650 N/25mm |
|
J-236 |
White |
Silicone |
0.18mm |
9 N/25mm |
650 N/25mm |
|
J-236C |
White |
Silicone |
0.18mm |
9 N/25mm |
650 N/25mm |
Product advantages
| Performance Dimension | Technical Advantages | Verification Data |
|---|---|---|
| High Temperature Resistance | After aging at 260℃ for 500 hours, the strength retention rate is > 90% | TUV Thermal Aging Report |
| Corrosion Resistance | Withstands soaking in a 10% acid-base solution for 72 hours without peeling off | Product Quality Inspection Sheet |
| Insulation Property | The breakdown voltage is ≥ 5kV (IEC 60243) | SGS Test Report |
| Flexibility | The number of flexing cycles is > 10,000 times (ASTM D2176) | Laboratory Measurement Records |
Storage conditions and validity period:
The product is stored at room temperature, 20℃～80%RH. Use the product within 3 months after the production date to obtain good performance. The product is acid-resistant, alkali-resistant, and high-temperature resistant.
product display
pressure sensitive cloth tape Application
FPC connection, motor insulation, powder coating, ultra-high temperature baking, electroplating and other industries.
FAQ
1/Q:How can l get more information about your product?
A:You can send us an emal or ask our online representatives and we can send you the latest catalog and priceist.
2/Q:Do you accept OEM or ODM?
A:Yes,But we have quantity requirements.please contact us directly.
3/Q:What is the payment way of your company?
A:T/T,sight L/C,Paypal,Western Union.
4/Q:What is the shipping way?
A:By sea,air,Fedex,DHL,UPS,TNT etc.
5/Q:How long for manufacturing once we place order?
A:lt's about 20-30 days after payment or disposit.
certificate
